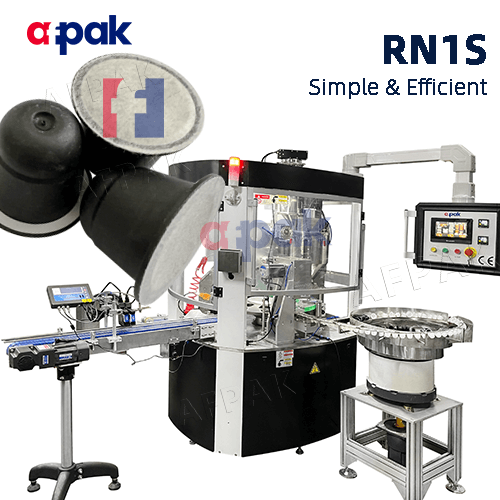

Biodegradable Nespresso Capsule Filling Machine- RN1S-AFPAK

  • The RN1S biodegradable Nespresso Capsule Filling Machine is an efficient, compact unit designed for precise filling and sealing of biodegradable and standard coffee capsules.
  • It features a fully automatic production line with advanced sensors and an Omron control system, ensuring consistent quality and performance.
  • Constructed with high-quality stainless steel and food-grade materials, the machine is built for longevity and ease of maintenance.
FeatureDescription
Special DesignEquipped with a capsule feeding device that saves labor and incorporates a variety of sensors for smart decision-making.
Control SystemUtilizes an Omron control system, with options for other brands like Allen Bradley, Schneider, and Mitsubishi.
Filling AccuracyUses a servo motor controlled filler with a filling accuracy of 0.2 grams error.
Construction MaterialBody is built with stainless steel 304, and food-grade stainless steel is used for all product contact parts.
Ease of UseDesigned to be user-friendly with straightforward operation and maintenance.

View more

Details

Additional Services

Video

Tech Support

The RN1S biodegradable Nespresso Capsule Filling Machine is specially designed for the filling and sealing of biodegradable cups and is also suitable for the filling and sealing of standard aluminum and plastic cups.

The RN1S model is a popular machine with customers because of its compactness, efficiency, high quality, long service life, and ease of use and maintenance, helping customers to quickly produce higher quality coffee capsules.

If you want to produce coffee capsules with biodegradable material, then this machine is the best choice for you

SPECIFICATIONS

ModelAF-RN1S
Filling head1 head
Filling Accuracy±0.2g
Machine speed3000-4000 cph
Voltage220V/60HZ/1PH
Machine size1400*1200*2000mm
Machine weight800KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. Special designed capsules feeding device, save labor.
  2. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
  3. Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
  4. Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
  5. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
  6. Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
  7. Machine is very easy to use and maintain.

FUNCTIONS

☆ Automatic Sort and feed the empty Nespresso capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.

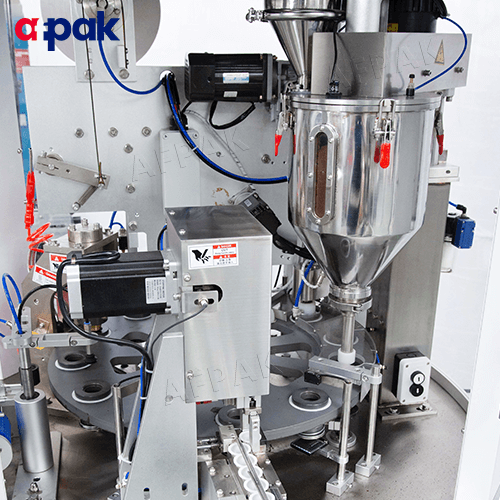

☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly

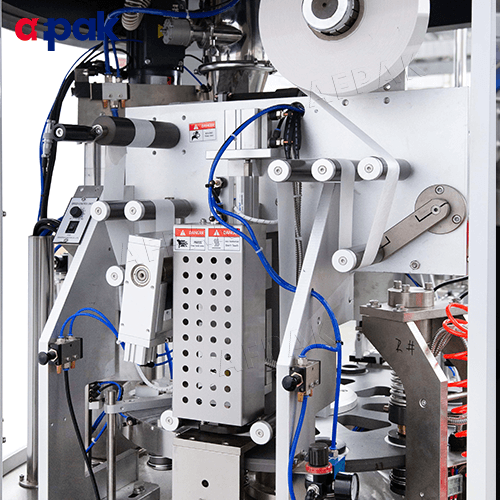

☆ Roll film cut and seal (Nitrogen flushing here)

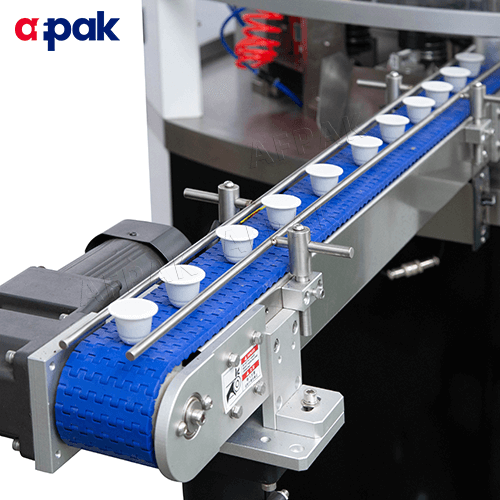

☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

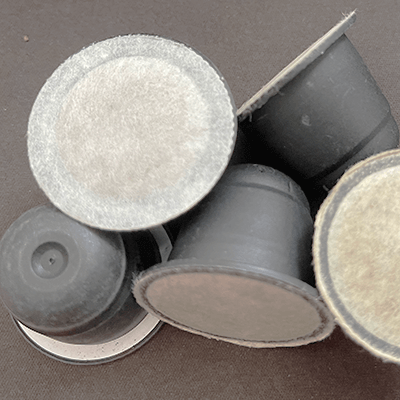

SAMPLES MADE BY THIS MACHINE

Machine Pictures

2 years warranty

Customize service available

In-person and Online Training

Videos/books manual

USA local technical support

Call 859-813-2814

Or write to anf717@gmail.com

For any technical support required
