H4 Nespresso filling sealing machine

  • The AF-H4 Nespresso filling sealing machine automates the coffee encapsulation process, ensuring precise filling and sealing with options for both plastic and aluminum capsules.
  • It integrates advanced sensors and an Omron control system for intelligent material handling and quality control, with the flexibility to incorporate alternative control brands.
  • Constructed with high-quality, globally sourced components, this machine prioritizes durability, precision, and user-friendliness, while also offering additional functions to cater to specific packaging needs.
FeatureDescription
Capsules Feeding DeviceSpecial design saves labor by automating the sorting and feeding of empty Nespresso capsules.
Sensor Detection SystemIntelligent sensors detect the presence or absence of capsules, lids, coffee, and other parameters to ensure accurate processing.
Servo Motor Controlled FillerProvides high accuracy filling with an error margin of 0.2 grams, ensuring consistent coffee weight in each capsule.
Material and ConstructionBuilt with stainless steel 304 and food-grade materials for product contact parts, guaranteeing longevity and hygiene.
Packaging OptionsOffers versatile packaging solutions, including bagging and boxing machines for various capsule quantities.

View more

Details

Additional Services

Video

Tech Support

AF-H4 Nespresso filling sealing machine is the solution to fill coffee in nespresso capsules, close and pack with Nitrogen gas.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.
This machine can produce both Plastic and Aluminum nespresso capsules

SPECIFICATIONS

ModelAF-H4
Filling head4 heads
Filling Accuracy±0.2g
Machine speed6000-7200 cph
Voltage220V/60HZ/3PH
Machine size4800*1200*12000mm
Machine weight2500KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. Special designed capsules feeding device, save labor.
  2. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
  3. Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
  4. Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
  5. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
  6. Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
  7. Machine is very easy to use and maintain.

FUNCTIONS

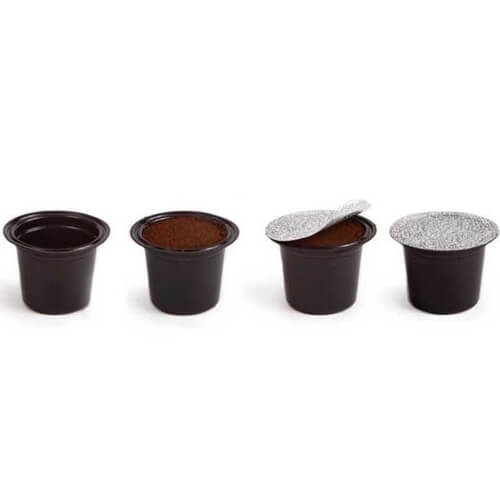

☆ Automatic Sort and feed the empty Nespresso capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

SAMPLES MADE BY THIS MACHINE

2 years warranty

Customize service available

In-person and Online Training

Videos/books manual

USA local technical support
