Aluminum Containers Forming Machine

Developed By Guangzhou YGX New Material Technology Co., Ltd

The AF45T aluminum container forming machine introduces the benefits of automation to the production of aluminum containers like coffee capsules, food trays, and drinks containers. This system can auto-feed aluminum sheet materials, auto-cover lubrication grease, auto-forming the containers, auto collect the final products.
Easy to operate, small footprint, economical and durable, it is your first choice for production

What can the AF45T Aluminum containers forming machine do for you?

AF45T Aluinum containers forming machine has a wide range of uses, you only need to change the mold to use it to produce various aluminum packaging containers. It is simple to use and requires only one person to operate the device. It is solid in workmanship and has a variety of specifications for you to choose

Features:

Auto feed aluminum sheet

Auto put Lubrication grease

Auto punch and form

Auto collect products

24 hours non stop produce

50-60 circles per min

45-300 T

Solid workmanship

Customize molds

CE certificates

Great support

Fast delivery

AF45T Aluminum containers forming machine videos

These are just part of our videos, welcome to subscribe our Youtube Channel for receiving newest videos from AFPAK. Thank you

How it works, getting started is easy

AF45T aluminum containers forming machine has rich functions, it can help you produce more beautiful aluminum security containers

Auluminum sheet feeding machine

It is a new split non tension feeding structure developed according to high-end wrinkle free products.

Aluminum sheet lubrication system

Better protection of materials and molds

Punch and form the products

High-precision molds and stable pressure make the molding effect more guaranteed

Collect final products

Enlarged collection chamber for better protection of the final aluminum container

Now, Enjoy the Profits.

One person can complete these tasks, stable and efficient

aluminum containers forming machine making machine

Specifications

Tech specification		unit	AF45T
Nominal force of slider		KN	450
Nominal force travel		mm	4
Slider travel		mm	250
Number of strokes	Fixed	次/min	80
Number of strokes	Variable	次/min	40-80
Maximum mold height		mm	760
Die height adjustment amount		mm	80
Distance from the center of the slider to the machine body		mm	440
Distance from column		mm	630
Slider bottom size	Left and right	mm	410
Slider bottom size	front and back	mm	340
Die shank hole size	Diameter	mm	50
Die shank hole size	Depth	mm	60
Table plate size	left and right	mm	810
Table plate size	Front and back	mm	440
Table distance from the ground		mm	900
Power of electric motor		Kw	7.5

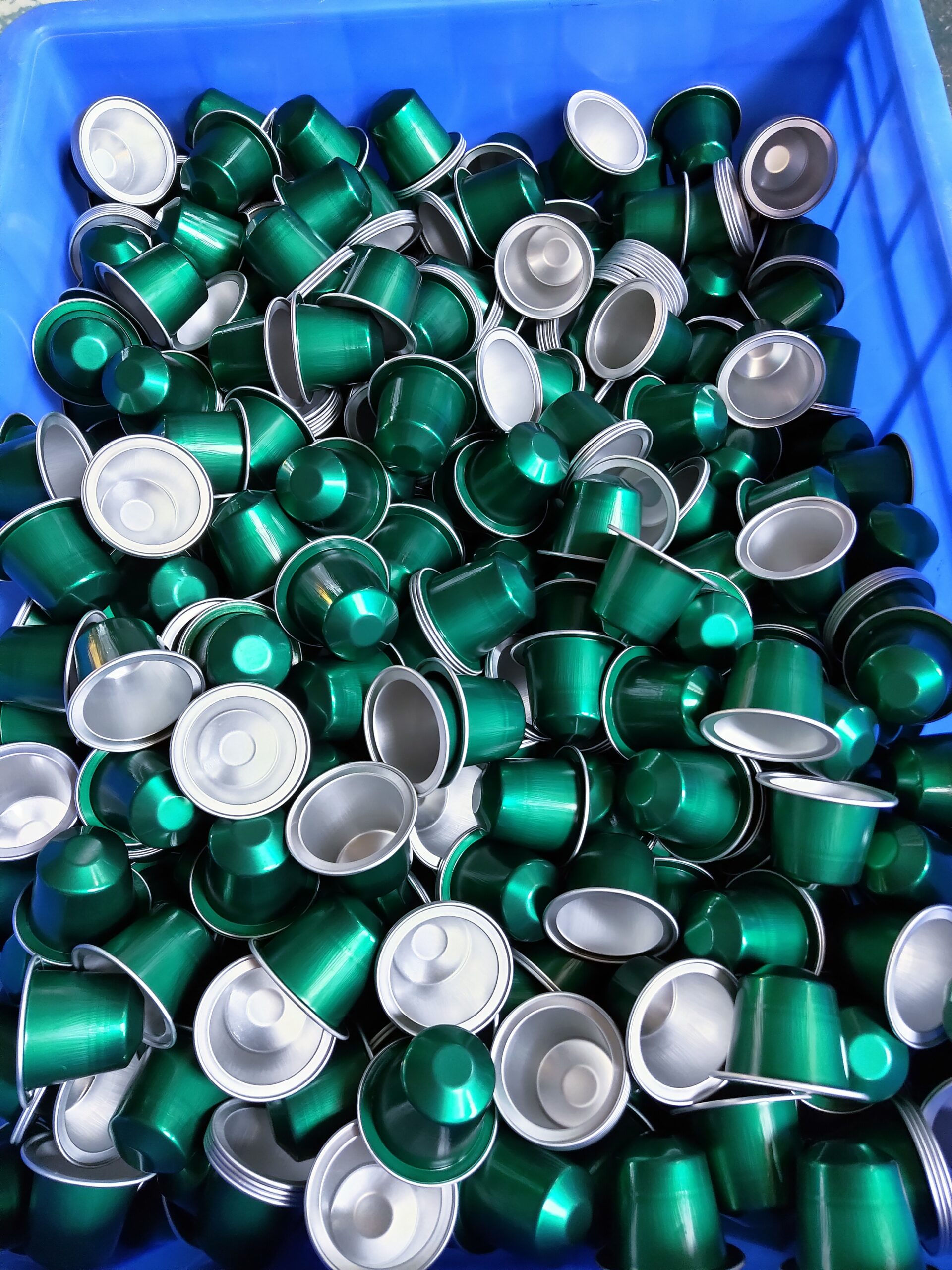

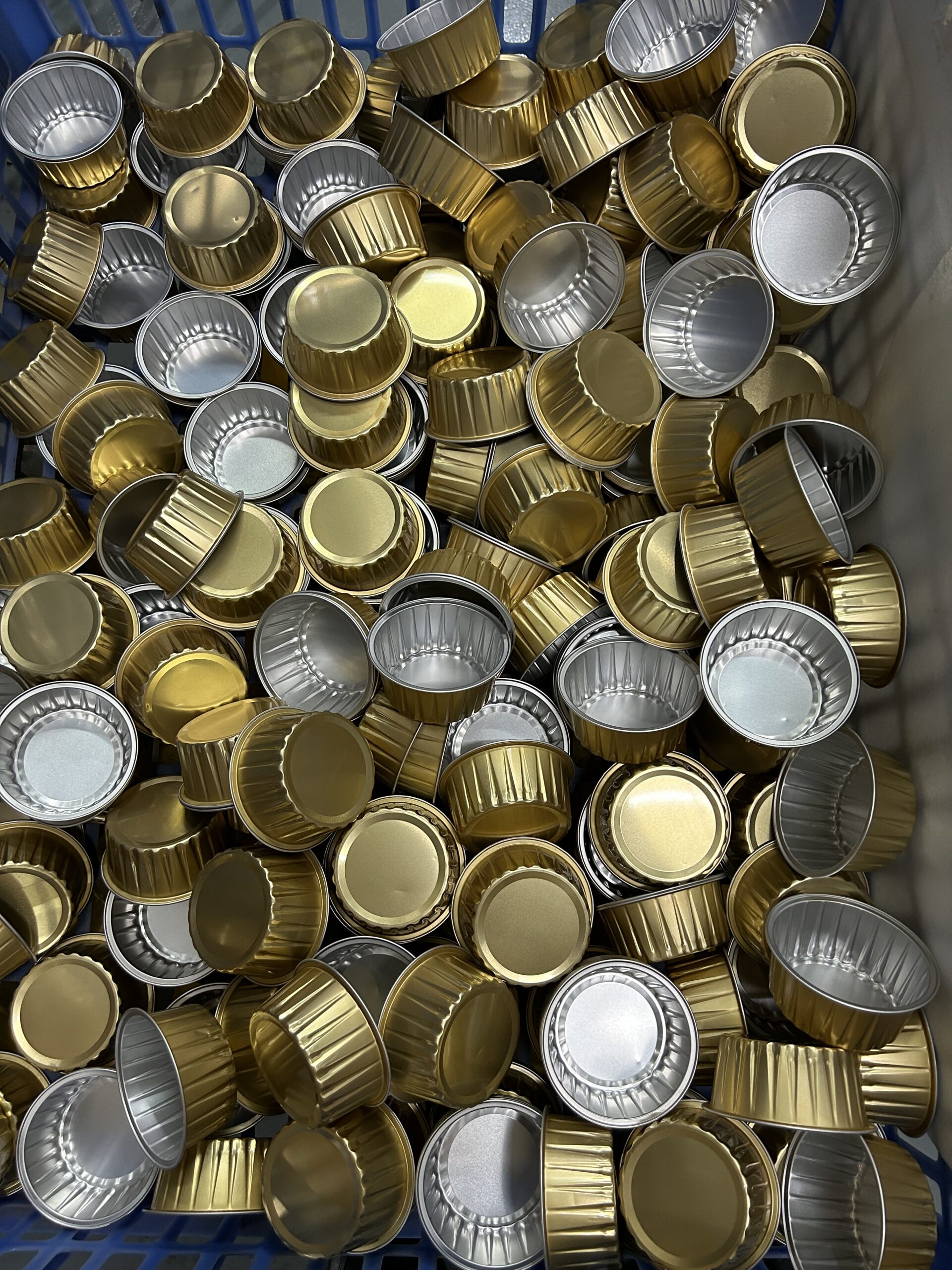

Aluminum containers

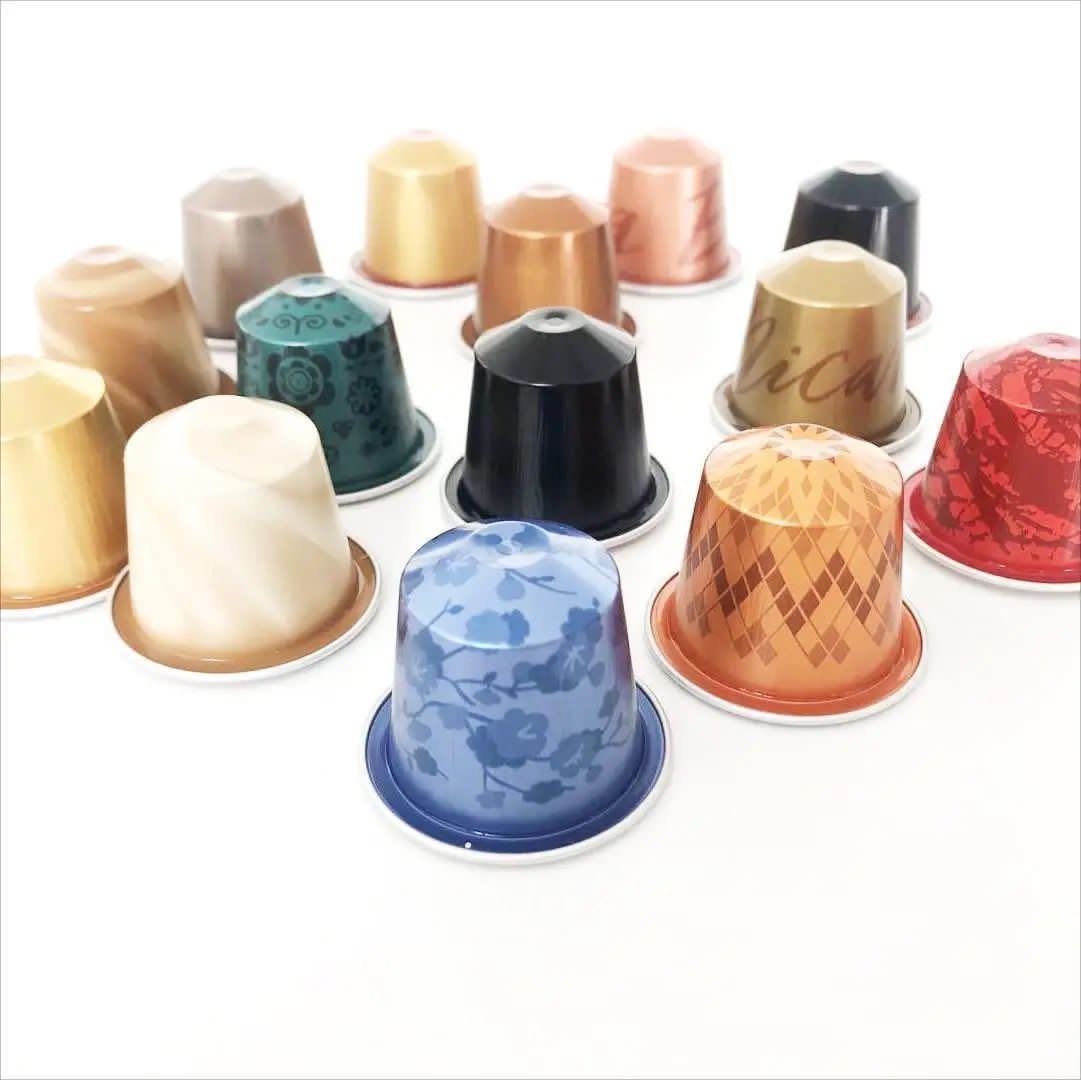

These aluminum containers samples are made by our machines

We can also customize the molds and machines according to your aluminum containers shapes and sizes

1-2 months delivery, Economic but quality solutions !

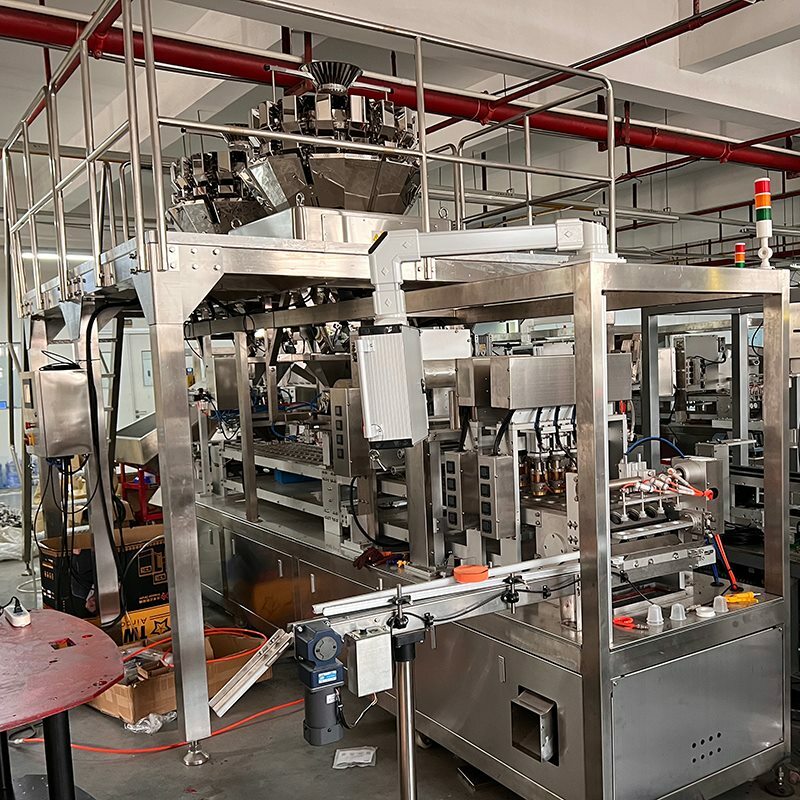

Filling Sealing Machines for the aluminum Containers

AFPAK can customize the filling sealing machines according to your aluminum containers shapes and sizes. We have 20-400 pieces per minute machines for you choose, just let me know your requirement.
