1500 cph Nespresso capsule filling machine

nespresso packaging

The AF-RN1S Nespresso capsule filling machine is a fully automated, compact unit designed for small spaces, capable of producing up to 30 capsules per minute.
It features a servo motor controlled filler with a 0.2-gram error margin, suitable for a variety of powder products including coffee, tea, and hot chocolate.
Constructed with heavy-duty stainless steel, the machine incorporates an Omron control system and high-quality components for reliability and longevity.

Feature	Description
Production Rate	Up to 30 capsules per minute (CPM)
Machine Type	Fully automatic, rotary type
Material	Heavy-duty constructed, stainless steel surface
Control System	Omron control system, with options for Allen Bradley, Schneider, Mitsubishi
Filling Accuracy	Servo Motor controlled filler with filling accuracy stable and high in 0.2 grams error margin
Product Compatibility	Suitable for various capsule types like aluminum and plastic Nespresso capsules
Additional Options	Inline weight detector, auto screw tea feeder, automated packaging solutions, inkjet printer

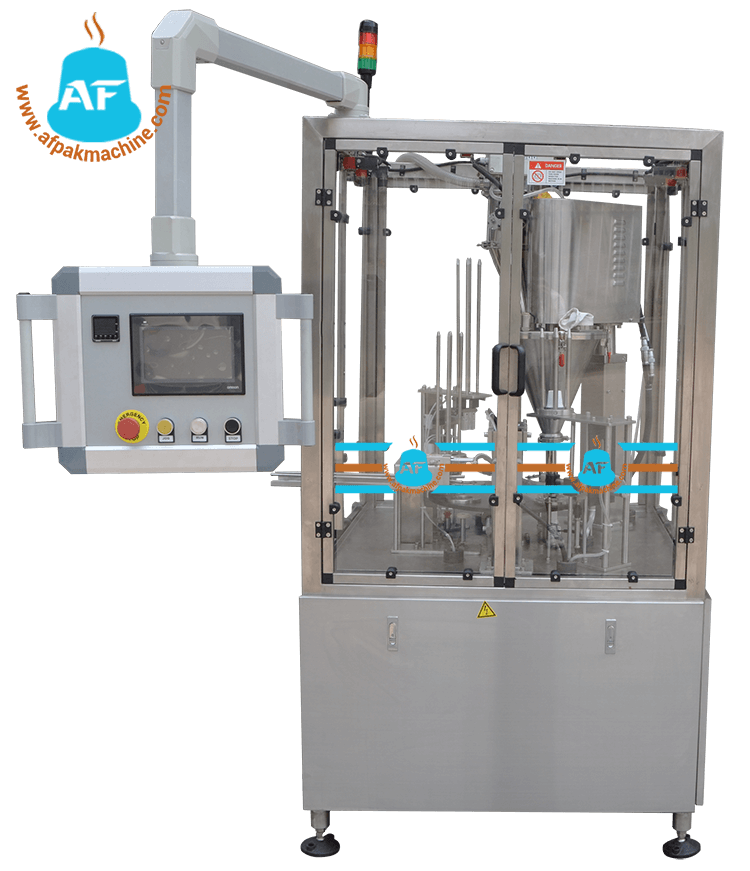

Rotary nespresso capsule filling machine

AF-RN1 model is full automatic Nespresso capsule filling machine which can produce up to 30 CPM.

Rotary type machine is very easy and convenient to operation, small foot print perfect for space limited production area.
Heavy duty constructed, stainless steel surface, extremely reliable.

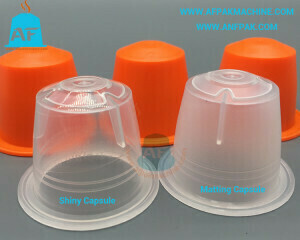

AF-RN1 Nespresso capsule filling machine able to fill and seal different type of pods like aluminum nespresso capsules, Plastic nespresso capsules

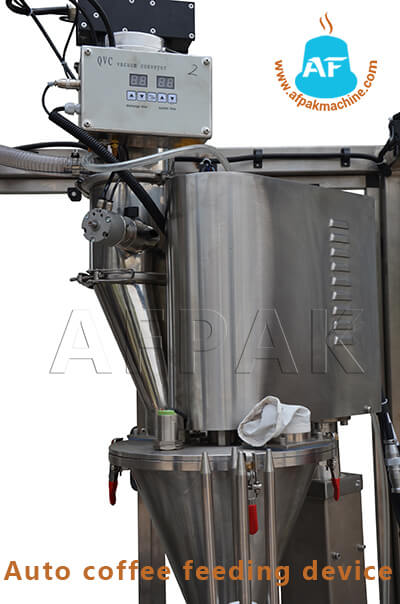

Servo drive auger filler suitable for various of powder products: coffee, tea, hot chocolate etc.

This machine can produce different sizes of capsules, very easy to change the fitting parts.

AFPAK also offer empty Nespresso capsuels, etc.

One stop K cup packaging solution, Only in AFPAK

SPECIFICATIONS

Model	AF-RN1
Filling head	1 head
Filling Accuracy	±0.2g
Machine speed	1500-1800 cph
Voltage	220V/60HZ/3PH
Machine size	120012002000mm
Machine weight	500KGS
Note	This is a custom-build machine, so each machine specifications will have different

FEATURES

Small layout, can stand in any small workshops.
It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.

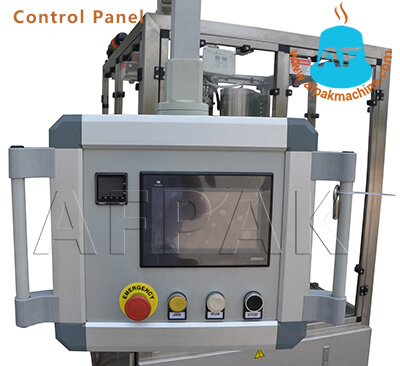

Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
Machine is very easy to use and maintain.

FUNCTIONS

☆ Automatic feed the empty Nespresso capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.

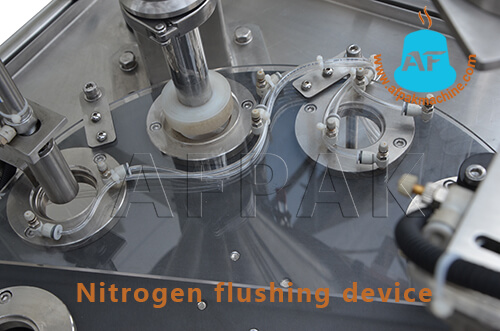

☆ Servo motor to fill coffee while vibrating, weight around 5g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine
☆ Inkjet printer
