H2-K-cup-filling-sealing-machine

AF-H2 K cup filling sealing machine is the solution to fill coffee in K cup / K shot capsules, seal, and pack with Nitrogen gas.
This is our newly designed machine, 2 lanes machine that can produce up to 6000 cph. Faster and more reliable!
Excellent Nitrogen flushing system Can flush over 94% Nitrogen inside the K cups to keep coffee fresh at its most!
This is a fully automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, and extremely smooth operation at all speeds.

SPECIFICATIONS

ModelAF-H2
Filling head2 heads
Filling Accuracy±0.2g
Machine speed4800-6000 cph
Voltage220V/60HZ/3PH
Machine size3200*1000*2000mm
Machine weight1200KGS
NoteThis is a custom-build machine, so each machine's specifications will have different

FEATURES

  1. Special-designed K cups feeding devices, save labor.
  2. Excellent Nitrogen flushing system Can flush over 94% Nitrogen inside the K cups to keep coffee fresh at its most!
  3. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
  4. Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, and Mitsubishi as per your requirement.
  5. Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
  6. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany, and France.
  7. Ruggedly constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food-grade stainless steel (SS304) is used for all parts in contact with products.
  8. The machine is very easy to use and maintain.

FUNCTIONS

☆ Automatic Sort and feed the empty K cup/K shot capsules
☆ Automatic detect whether capsules are well loaded on the machine by sensor.
☆ Put filter cups into the k cups (if you are using the Separate K cups)
☆ Servo motor to fill coffee while vibrating, weight around 7-12g ( can be adjusted)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Flavor liquid filling system
☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

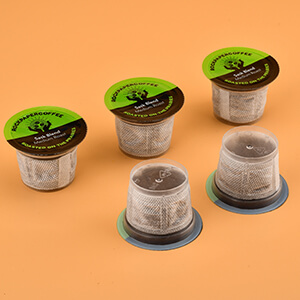

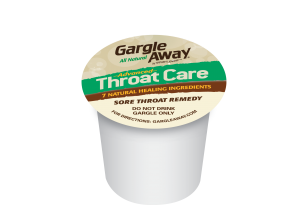

SAMPLES MADE BY THIS MACHINE

Machine Pictures

Related K cups and sealing lids that AFPAK can provide

Separated K cups
Out cups: PP #5 Material
Filter cups: Nylon filter +PP frame
*Small MOQ, Good price*
Welded K cups (filter welded on cup body)
Out cups: PP #5 Material
Filter cups: Paper filter
*Small MOQ, Good price*
