H4-Dolce-Gusto-Filling-Sealing-Machine

AF-H4 Dolce Gusto filling packaging machine is the solution to fill coffee in nespresso capsules, close and pack with Nitrogen gas.It can produce up to 9600 capsules per hour.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.
Special designed empty dolce gusto capsules sorting and feeding device, Save labor and cost

SPECIFICATIONS

ModelAF-H4
Filling head4 heads
Filling Accuracy±0.2g
Machine speed7000-9600 cph
Voltage220V/60HZ/3PH
Machine size6800*1200*12000mm
Machine weight2500KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. Special designed capsules feeding device, save labor and cost.
  2. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
  3. Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
  4. Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
  5. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
  6. Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
  7. AF-H4 Dolce Gusto filling sealing Machine is very easy to use and maintain.

FUNCTIONS

☆ Automatic Sort and feed the empty Dolce Gusto capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 7-10g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ NO-EDGE cutting and sealing inside film/paper filter
☆ NO-EDGE cutting and sealing outside plastic/aluminum foil
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

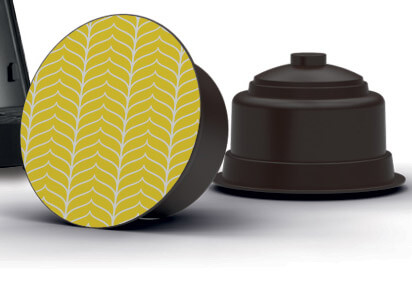

SAMPLES MADE BY THIS MACHINE
