2400cph DOLCE GUSTO FILLING SEALING MACHINE

  • The 2400cph DOLCE GUSTO FILLING SEALING MACHINE is a linear type, high-precision equipment tailored for small to medium coffee companies, capable of filling, sealing, and packaging Dolce Gusto capsules with various materials including coffee, milk, cocoa, and tea.
  • Utilizing a servo motor for controlled filling and a multi Nitrogen flushing tunnel for preservation, the machine ensures stable filling accuracy within ±0.2 grams and low oxygen levels to extend product shelf life.
  • Constructed with durable stainless steel and equipped with international brand electrical components, the machine is designed for simplicity in use and maintenance, aiming to reduce production costs and enhance factory intelligence.
FeatureDescription
Capacity1800 to 3000 capsules per hour
MaterialHigh-quality stainless steel with anti-corrosion treatment
Sealing SystemPatent design with high fastness
Filling Accuracy±0.2 grams with servo motor control
Optional FunctionsInline weight detector, auto screw tea feeder, automated packaging solutions

View more
Details

1800 cph-3000cph Dolce Gusto filling sealing machine is the solution to fill coffee in dolce gusto capsules, close and pack with Nitrogen gas.
This is a linear type machine, More functionality can be achieved, it is able to carry out deep customization to meet your production requirements
Not only coffee capsules, you can also use this machine to produce milk capsules, cocoa capsules, tea capsules and so on
The use of high-quality stainless steel materials and anti-corrosion treatment of materials, and the use of international brands of electrical components, so that the machine more durable.
The use and maintenance of the machine is very simple, effectively reducing the production costs of the factory, making your factory more intelligent
This machine can produce different sizes capsules by changing fitting parts

SPECIFICATIONS

ModelAF-H1
Filling head1 head
Filling Accuracy±0.2g
Machine speed1500-2000 cph
Voltage220V/60HZ/3PH
Machine size1800*900*2000mm
Machine weight500KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. An ideal entry-level equipment for small and medium-size coffee comanies to produce dolce gusto coffee capsules
  2. Filling is controlled by servo motor, fast and high accuracy, can keep the stable filling accuracy at ±0.2 grams
  3. Patent Design Sealing System, high fastness
  4. Multi Nitrogen flushing tunnel to keep low oxygen residents and protect your coffee for a long time.
  5. Strong seal ensures 100% finished product quality

FUNCTIONS

☆ Automatic Sort and feed the empty Dolce Gusto capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Auto seal the middle layer film (for espresso coffee)
☆ Auto seal the top layer film
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

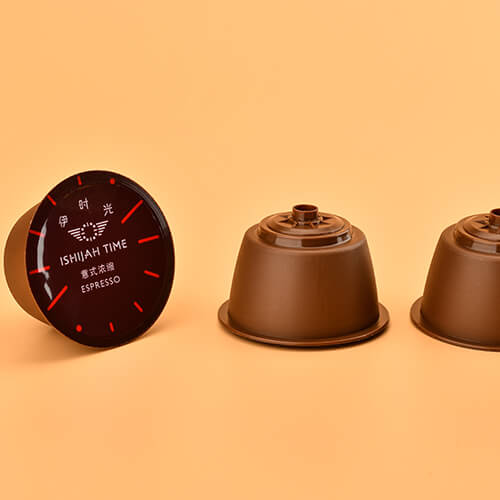

SAMPLES MADE BY THIS MACHINE

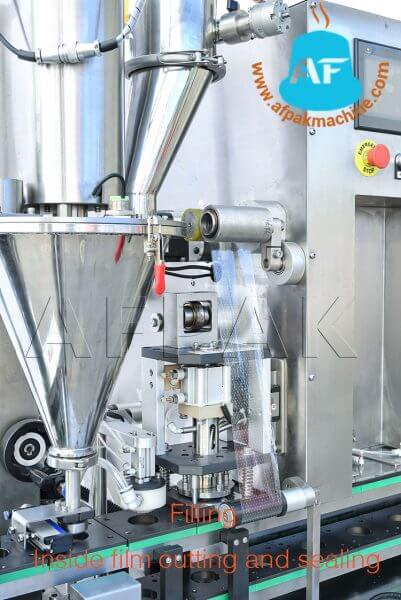

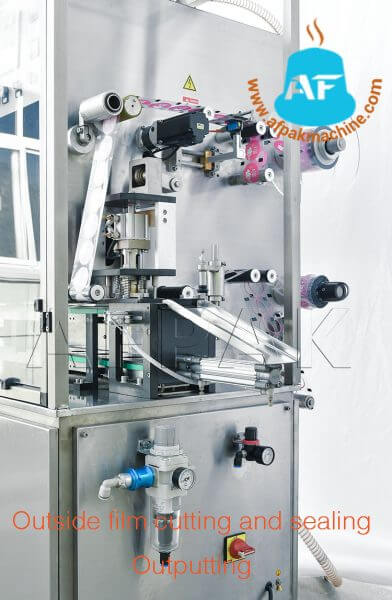

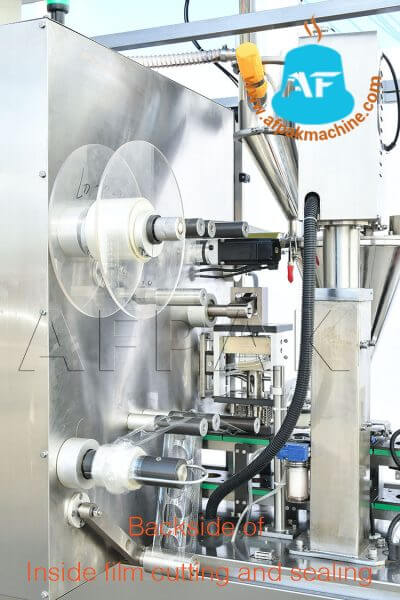

Machine Pictures

Control Panel of box packaging machine
Control Panel of box packaging machine

Additional Services

2 years warranty

Customize service available

In-person and Online Training

Videos/books manual

USA local technical support
