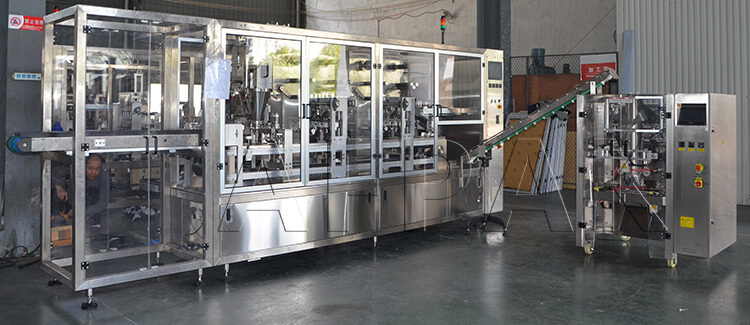

H2 Dolce gusto filling sealing and bag packaging machine

AF-H2 Dolce gusto filling sealing packaging machine is the solution to fill coffee in Dolce gusto capsules, close and pack with Nitrogen gas.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.
This machine can produce both Dolce gusto capsules with inside and without inside seal
This Dolce gusto filling sealing packaging machine not only can produce espresso coffee, but also can pack Chocolate, milk powder, cappuccino powder, tea powder/granules, etc

SPECIFICATIONS

ModelAF-H2
Filling head2 heads
Filling Accuracy±0.2g
Machine speed3500-4800 cph
Voltage220V/60HZ/3PH
Machine size4800*4000*2200mm
Machine weight2000KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. Special designed capsules feeding device, save labor.
  2. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
  3. Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
  4. Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
  5. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
  6. Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
  7. Machine is very easy to use and maintain.
  8. Widely applications: Espresso coffee, cappuccino coffee powder, chocolate powder, tea powder, etc.

FUNCTIONS

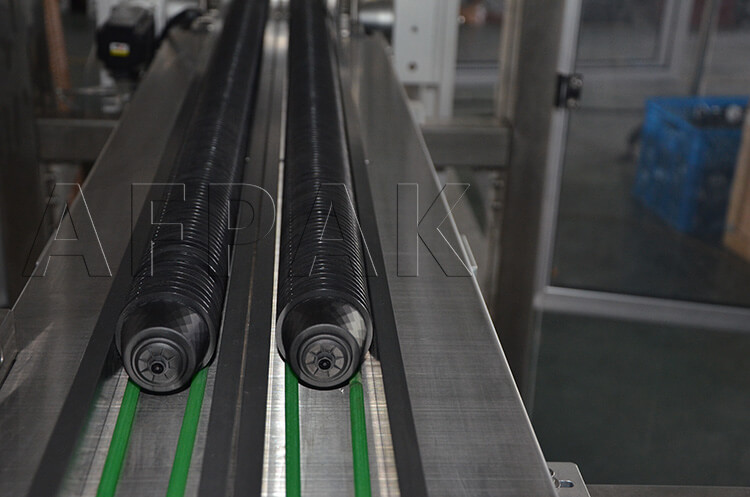

☆ Automatic feed the empty Dolce Gusto capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 7-8 g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly

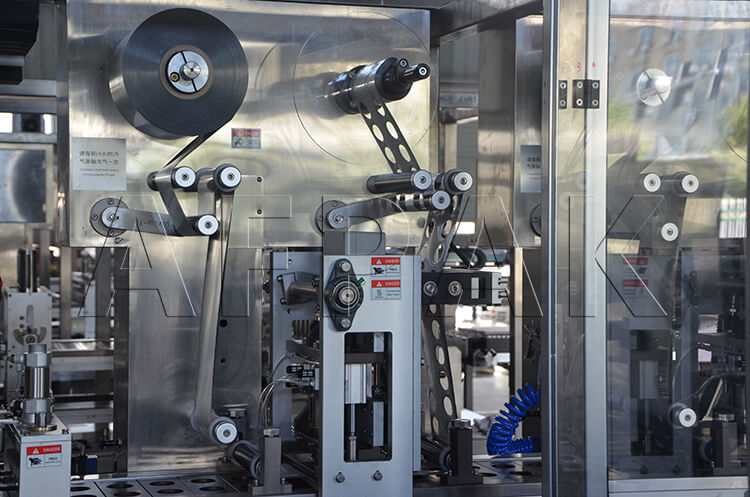

☆ Auto sealing and cutting inside/outside film
☆ Output to the conveyor

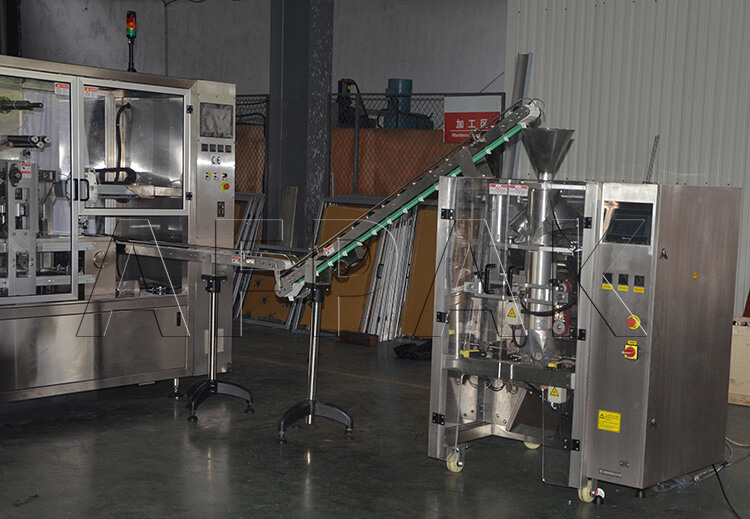

☆ Pack 10-20 pcs in one bag

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

SAMPLES MADE BY THIS MACHINE

Machine Pictures
