H1 Dolce Gusto bottom welding filling and sealing machine

The AF-H1 Dolce Gusto machine is a fully automated system for producing and sealing coffee capsules, featuring advanced sensors for precise detection and response to production variables.
It boasts a high-accuracy servo motor-controlled filler with a 0.2-gram error margin and is constructed with durable stainless steel 304 for longevity.
The machine is designed for versatility, allowing for the production of various capsule types, including Nespresso and K-Cups, and offers optional functions such as inline weight detection and automated packaging.

Feature	Description
Capsule Feeding Mechanism	Special design reduces labor needs by automating the feeding of capsules.
Sensor Technology	Detects presence or absence of cups, lids, coffee, air pressure, temperature, and position.
Filling Accuracy	Servo Motor controlled filler ensures stable and high accuracy, with a 0.2 grams error margin.
Control System	Omron control system as standard, with options for other leading brands.
Material and Construction	Rugged construction with stainless steel 304 and food-grade materials for all product contact.
Ease of Use and Maintenance	Designed for user-friendliness, with global quality components ensuring reliability and ease of maintenance.

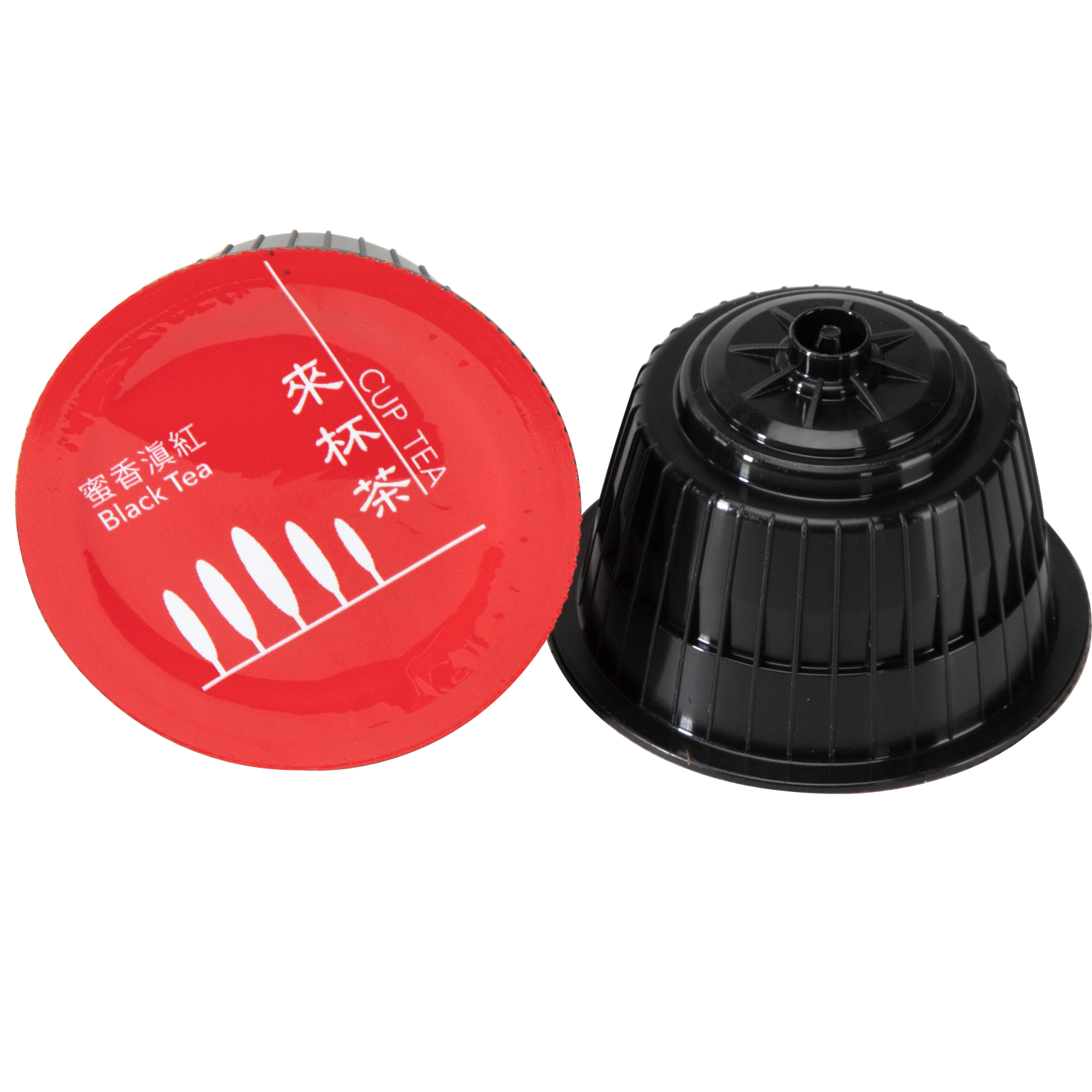

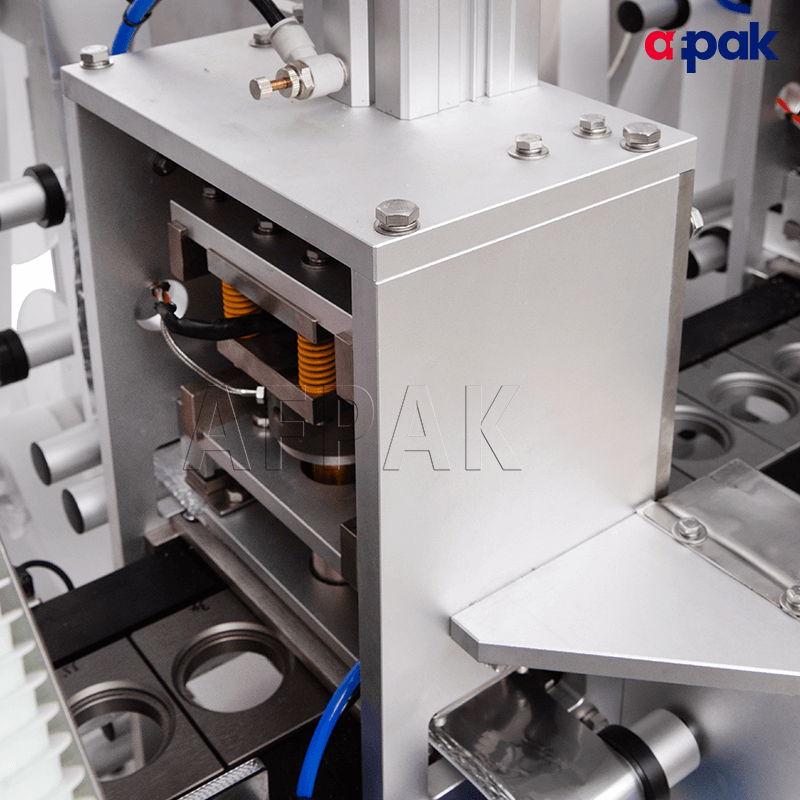

AF-H1 Dolce Gusto bottom welding filling sealing machine is the solution to cut and seal the film to the bottom of dolce gusto compatible capsules, fill coffee/tea/soluble powders, seal and pack with Nitrogen gas.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.
This machine is changeable to produce nespresso, k cups and other types of capsules

SPECIFICATIONS

Model	AF-H1
Filling head	1 head
Filling Accuracy	±0.2g
Machine speed	2000-3000 cph
Voltage	220V/50-60HZ/1PH
Machine size	300012002000mm
Machine weight	1000KGS
Note	This is a custom-build machine, so each machine specifications will have different

FEATURES

Special designed capsules feeding device, save labor.
It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
Machine is very easy to use and maintain.

FUNCTIONS

☆ Automatic Sort and feed the empty Nespresso capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine
