Nespresso capsule filler Nespresso pod filling machine
What is the Nespresso capsule filler Nespresso pod filling machine?

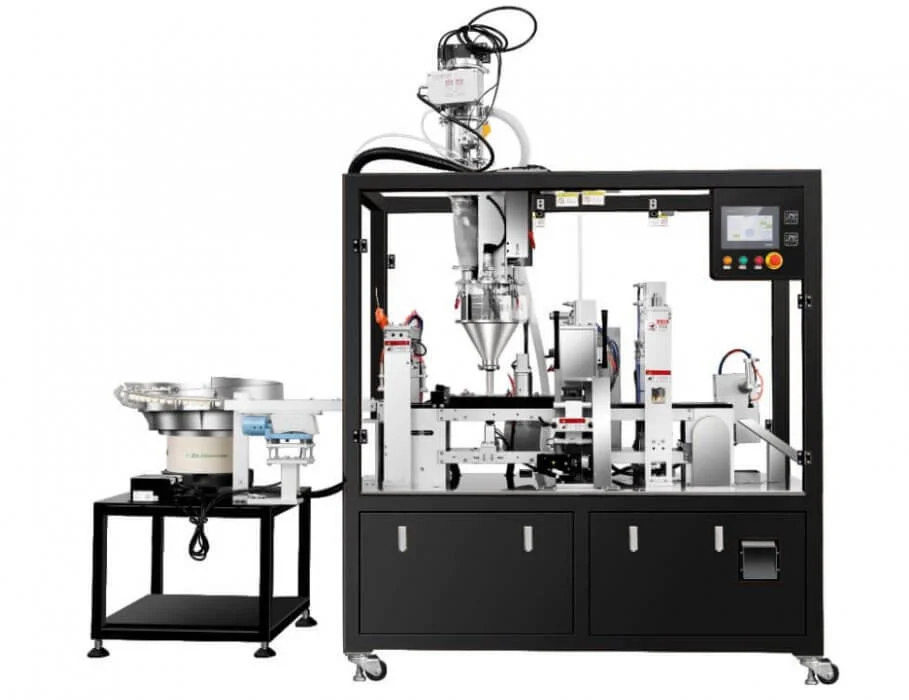

AF-H1 Nespresso capsule filler is a good solution to fill coffee in Nespresso capsules/pods, seal with Nitrogen gas. especially suit for starter company to build their own coffee capsules products.
It is small and compact, with all the features to produce the highest quality Nespresso coffee capsules
The Nespresso pod filling machine can realize the functions: automatic pods sorting (designed for biodegradable pods), automatic filling, automatic sealing, automatic cup-out function; more intelligent operation, such as no cup, no filling, no sealing function, material shortage alarm, Automatic feeding, and other functions
This series of equipment adopts PLC control, touch screen operation, customers can easily learn and operate
It has four wheels and can be easily moved to any place, you only need to leave a space of 1m around the device
This Nespresso capsule filler is suitable for the production of biodegradable, plastic, and aluminum Nespresso capsules.
It can also replace molds and accessories to produce other capsule products such as K cups, Lavazza capsules, dolce gusto pods, etc.
Please note that this Nespresso capsule filler machine needs to be used with an air compressor. You can use a nitrogen generator or rent a nitrogen tank locally to supply nitrogen to the equipment. We can also provide you with a complete system, you can contact us
|Filling head||1 head|
|Machine speed||1800-3000 cph|
|Note||This is a custom-build machine, so each machine specifications will have different|
- It is the most suitable filling and sealing equipment for initial enterprises to produce high-quality Nespresso pods
- High-speed production brings more possibilities for your products in the future
- Perfect sealing, make your Nespresso capsules fresher
- High-concentration nitrogen filling, allowing your coffee to be better protected while filling and sealing
- A small footprint can be produced in the laboratory
- More advanced performance makes your production more stable
- It is easier to use and maintain, no need for professional technicians, you can easily use it yourself
☆ Automatic Vibrate Sort and feed the empty Nespresso capsules （optional function）
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjusted)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Output the finished capsules
☆ Inline weight detector
☆ Auto Screw feeder
☆ Cutting and putting the filter on the capsule button.
☆ The machine of packing 1/10/20 pcs in one bag machine
☆ The Machine of packing 4/10 pcs in one box machine
Why AFPAK’s Nespresso capsule filler machine is your best choice
There are too many highlights in AFPAK’s Nespresso capsule filler equipment this year. It Not only has a good appearance but also has a newer technology update. Even friends who have bought a lot of equipment will sigh: this is probably the most worthwhile Nespresso filling sealing equipment to buy this year, none of them
The reason why it has become the most worth buying equipment and it is deeply loved by users. He did it: realize more functions in a compact body, a variety of colors to match the customer’s appearance, a bold structure, and a self-developed software system, More user-friendly improvements, bilingual control in Chinese and English, etc.
Our American customer evaluation: “finally saw that the quality of the Nespresso filling packing machines produced by Chinese manufacturers can be comparable to that of Europe”
Our equipment also alleviates the problem of tight budgets for customers: ”AFPAK has helped me produce such good equipment, which allows me to quickly enter production after receiving the equipment. You have done a great job, and I will buy more equipment.“
The idealist of high-quality Nespresso filling，sealing and packing machines
Regardless of cost, pursue the ultimate
For a long time, AFPAK has been on its mission to produce better equipment to shorten the gap between European and American advanced equipment. After several years of rapid development in pursuit of quality regardless of cost, it finally has the confidence to compare with European and American advanced equipment.
As for the ultimate pursuit, let’s talk about it in detail below:
First: product design is accurate to each component
As customized equipment, after receiving samples from customers, we will design different functions and different mechanisms according to the structure and characteristics of the coffee capsule.
At the same time, if we encounter any changes during the manufacturing and assembly process, we will require the design part to produce drawings first, and the changes will be made after the approval of the technical supervisor.
Second, produce parts according to the drawings, no difference
We use advanced European imported processing centers to produce parts
After the parts are produced, they need to go through strict measurement to confirm that the error is within a very small range, and then start to assemble
Third, the assembly process is tightly integrated
Each machine is assembled by a master with at least ten years of experience.
They have rich experience and can complete all kinds of installation work efficiently and orderly
Finally: devastating tests
We take into account the customer’s use of the scene to carry out various tests on the equipment. In order to solve all kinds of potential problems
All equipment must pass three tests: installer, technical director, and sales director.
We welcome customers to send professional technology to our factory to test and learn to use your equipment
From design, manufacturing, testing, delivery, and other links, we will strictly control the quality, all in order to provide customers with better Nespresso capsule filler equipment
Patented design functions to produce each coffee capsule in perfect harmony
Years of Nespresso capsule filling sealing machines manufacturing experience allows us to better understand the needs of customers
We have prepared for you:
1- empty Nespresso capsules feeding system：
At present, there are many choices of coffee capsules available on the market, such as biodegradable, aluminum, plastic, paper, etc. We have specific functional designs for different capsule cup structures and material characteristics, which can meet the production of all capsule cups.
2- No Capsules No filling, No lids No sealing function:
Intelligent control of your production, our equipment has up to 10 intelligent sensor probes to control the operation of the machine
3- High-precision servo filling
The filling system that can ensure stable operation of +/-0.2grams error is also the most advanced design in the world. Our filling system is equipped with an automatic vacuum feeding device, which can meet fully automatic operation
4- Pre-cut lids or roll film placement system
The uniquely designed film cutting system can cut the sealing film into the capsule cup without any remaining extra edges. The cutter and sealer is on the same station.
The film can also be placed on the cup accurately without shifting
0-400 Centi degree sealing temperature is adjustable. and sealing is strong and beautiful
6- Nitrogen flushing
This is the most important function, which can protect your coffee in the capsule cup for up to 24 months. How to fill with nitrogen efficiently? This is currently a long-term technology accumulation.
AFPAK equipment can guarantee the nitrogen content within 3% to better preserve your coffee flavor
We also provide you with a wealth of optional features:
1- Inline Weighing System:
If you have more stringent requirements for the importance of each capsule, it is recommended that you install this function. It can detect the weight of each capsule and eliminate unqualified capsules.
2- Essential oil and liquid filling system
If you have a different flavor, you need to add it to the coffee. Then you can choose to install this feature.
3- Output conveyor belt plus counting and flip function
If you need 100 or other quantities of coffee capsules into a carton, we strongly recommend that you install this feature, which greatly saves your time and experience
4- Box、carton packaging machines system
If your output is large, then we recommend that you use our boxing system, which can fully customize your equipment according to your box shape, size, and boxing method
If you need other functions, welcome to communicate with us. AFPAK has a wealth of customization experience and can customize the Nespresso coffee capsules filling, sealing, and packaging equipment for you.
More choices for Nespresso capsule filler
H1 is our entry-level equipment, capable of producing 1500-3000 Nespresso coffee capsules per hour for you. Of course, we have more other equipment, you are welcome to choose
1- Best-selling option- RN1S Nespresso filling machine
It also has a super good-looking appearance, advanced technology, and super small body. It has become our best-selling model. It is the favorite equipment of American Coffee Company customers.
Although he is small, his output is extremely high: able to make 50-70 capsules per minute.
It has rich functions and can meet all the needs of producing a good capsule.
There are more details, please contact AFPAK to explore
2- New design-RN120 Nespresso pod filling machine
Compared to RN1S, his output has doubled. He can produce 100-120 capsules per minute and has all the functions required to produce a single capsule.
Hurr/y up and learn more
3- Big capacities: 2/4/6/8/10 lanes Nespresso compatible filling sealing machine
What? The size of the rotary machine is too small to achieve more functions and faster output?
Don’t worry, our H2/4/6/8/10 Nespresso compatible filling sealing machines will help you solve your doubts
This is our linear design, with 2, 4, 6, 8, and 10 lanes of production.
Each lane can produce 40-50 capsules per minute
It has a larger size and can place more functions. It is the best choice for mass production
4- Production Line: HB410 Nespresso filling packaging machine
Are you looking for a one-stop production line for Nespresso filling, sealing, and cartoning? Then this device is very suitable for you.
He can make 20-30 boxes per minute and can customize the equipment according to your box size and packing method
Welcome to contact us for more details
FAQ about the Nespresso capsule filler
What empty Nespresso capsules can I use?

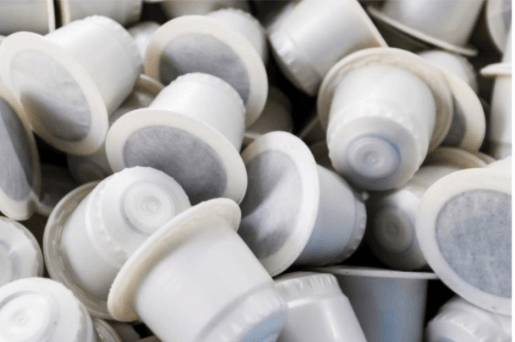

There are three main materials for the mainstream capsules on the market:
- Aluminum: This is the main material used by Nespresso. At present, aluminum-compatible capsules produced by other manufacturers will have some minor problems. But most of them are universal
- Plastic: The current plastic Nespresso compatible capsule is the main material. They can use all Nespresso maker machines. There are many mature manufacturers that produce sub-material products.
- Biodegradable material: This material is the material that all capsule manufacturers want to use. Because aluminum and plastic Nespresso compatible capsules have caused many environmental problems, biodegradable materials are the main trend in the future.
For manufacturers of various materials, you can contact us and we will share contact information
Can we use capsule of different materials or different specifications on one machine?
Sure, you can
We will provide different solutions according to your capsule cup size and material
So you are welcome to tell me your specific needs
Can I fill other materials like liquid, paste by this machine?
We can design the filling method according to your filling material.
At present, we have produced equipment for companies that produce beverages and skin care products.
What do you need to prepare for Nespresso capsule fillers running?
The operation of our equipment requires the cooperation of electricity and air
But our equipment consumes little power. Generally, we use single-phase power for single-row equipment, and three-phase power for multi-row Nespresso filling equipment.
Power consumption is also in the range of 2.5kw/h to 20kw/h
Regarding gas supply, we don’t need a big air compressor to cooperate. Generally, our gas consumption is between 200L/min and 1000L/min. Different Nespresso capsule filler equipment has different gas consumption.
Is nitrogen necessary for our nespresso filling machine?
For AFPAK‘s Nespresso filling sealing machines operation, nitrogen is not an important factor. Because our equipment structure does not need nitrogen to promote
But for the quality of coffee, nitrogen is necessary, which can effectively prevent coffee from oxidative deterioration and protect your coffee for a longer time.
So you can assemble the nitrogen device according to your needs
Does our equipment need a lot of space?
No, our equipment does not occupy a lot of space, and 1-2 people can operate the equipment
