Lavazza a modo mio filling sealing machine

lavazza capsule filling sealing

The AF-H1 Lavazza a modo mio filling sealing machine automates the coffee capsule filling process with high precision, using sensors to ensure proper loading and a servo motor for accurate dosing.
It is designed to handle both Lavazza a modo mio and blue capsules, with the capability to adjust coffee weight and incorporate nitrogen flushing for optimal freshness.
The machine offers additional features such as edge cleaning, lid placement, and various packaging options, including bagging and boxing different quantities of capsules.

Feature	Description
Automatic Feeding	Feeds empty Lavazza capsules into the machine for filling.
Sensor Detection	Detects if capsules are properly loaded before filling.
Servo Motor Filling	Fills coffee with adjustable weight (5-7g) and vibration for consistent dosing.
Nitrogen Flushing	Flushes capsules with nitrogen gas to preserve coffee freshness.
Packaging Options	Offers inline weight detection and various packaging configurations for bags and boxes.

H1-lavazza-capsule-filling-sealing-machine

AF-H1 Lavazza a modo mio filling sealing machine is the solution to fill coffee in lavazza a modo mio and blue capsules, close and pack with Nitrogen gas.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.

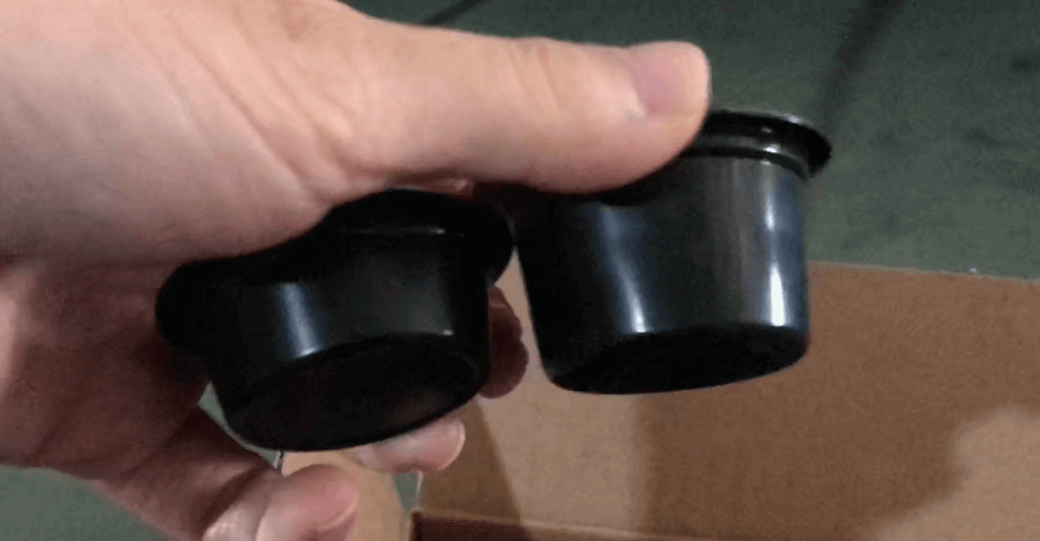

This machine can produce both lavazza a modo mio and lavazza blue capsules

SPECIFICATIONS

Model	AF-H1
Filling head	1 head
Filling Accuracy	±0.2g
Machine speed	1500-1800 cph
Voltage	220V/60HZ/3PH
Machine size	20009002000mm
Machine weight	500KGS
Note	This is a custom-build machine, so each machine specifications will have different

FEATURES

Fast speed: 1 lane working, Up to 30 cycles/min, Produce up to 30 capsules/min
Maintenance-free, backlash-free carrier plastes driven by pneumatic cylinders to transport the containers
Vertical Empty capsules storage and dropping system to save labors and time
Self-sufficient filling module,Servomotor driven volumetric augers to keep high and stable filling accuracy
Operator-friendly hoppers emptying and cleaning design, less than 5 mins fast clean
Sealing temperature adjustable, beautiful and tight seal guaranteed.
Incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc
Standard control system from Omron or Siemens or Allen Bradley
Various exit options for different second packaging solutions.
High-efficiency Nitrogen flushing system, keep over 95% Nitrogen inside.
Easy cleaning and product change, even between coffee and soluble powders
The entire production process can be easily monitored by an operator performing all operations on the front side of the machine
Safety Door: Open door, machine stop
Small footprint layout required: you can put this machine in any places

FUNCTIONS

☆ Automatic feed the empty lavazza a modo mio capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly

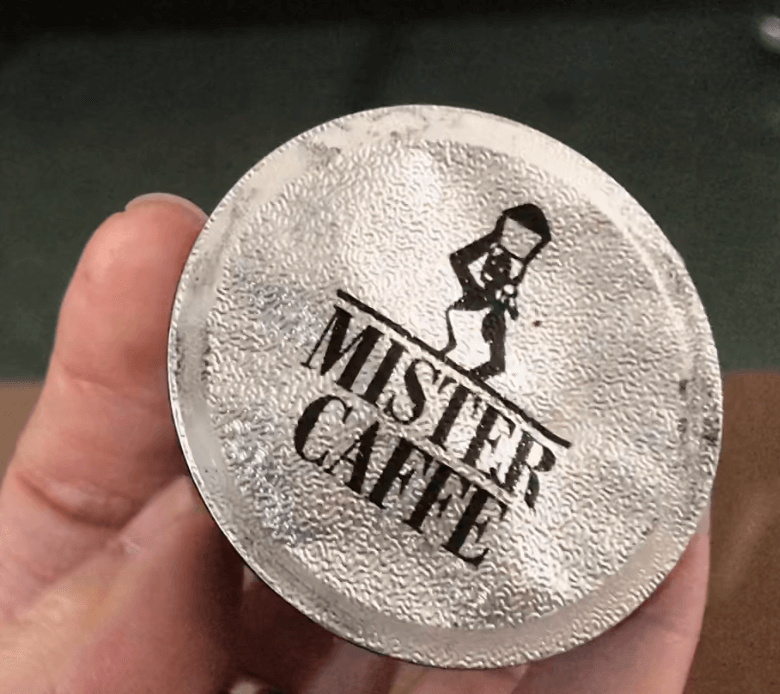

☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine
