Lavazza Espresso Point filling sealing machine
chevron-left
chevron-right

Watch Machine Video

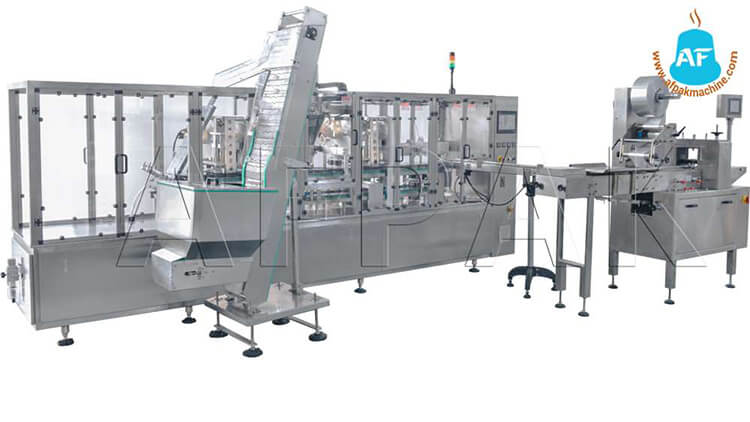

AF-H2/H4 Lavazza Espresso Point filling sealing machine is the solution to fill coffee in Lavazza espresso point, close and pack with Nitrogen gas.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.

SPECIFICATIONS

ModelAF-H2AF-H4
Filling head2 heads4 heads
Filling Accuracy±0.3g±0.3g
Machine speed3000-3600 cph6000-7200 cph
Voltage220V/60HZ/3PH220V/60HZ/3PH
Machine size4800*3000*2000mm
Machine weight2000KGS2500 KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
  2. Omron control system will ensure reliable power to drive the whole line
  3. Servo Motor controlled filler, filling accuracy is stable and high in 0.2grams error.
  4. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
  5. Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS316) is used for all parts in contact with products.

FUNCTIONS

☆ Automatic Sort and feed the empty lavazza point capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.

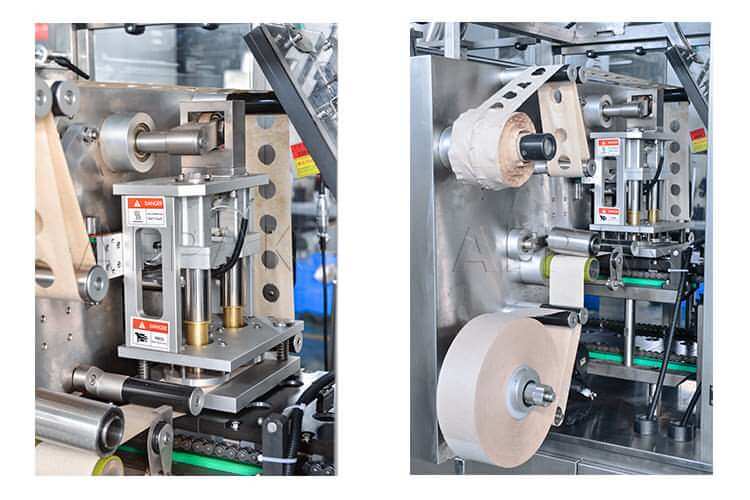

☆ Cutting and sealing the filter on the capsule button.
☆ Servo motor to fill coffee while vibrating, weight around 7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ (No extra edge)Cutting and sealing the filter on the capsules top (Nitrogen flushing here)

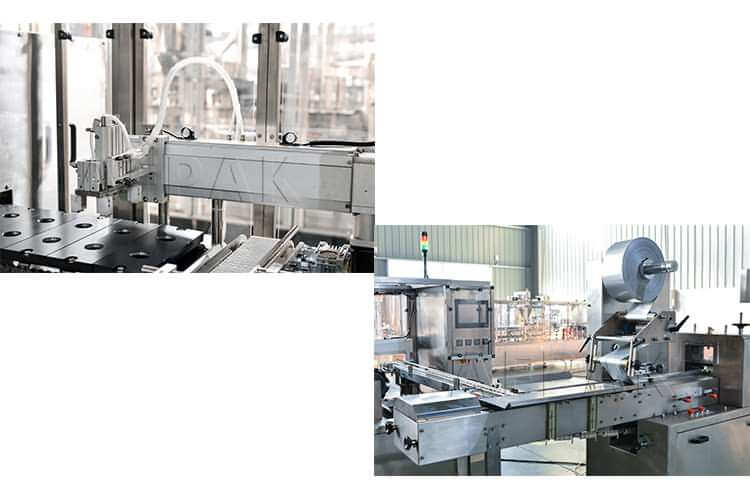

☆ Output to the conveyor
☆ forming the bags
☆ Pack the capsules in one bag with Nitrogen flushing
☆ Output the finished capsules

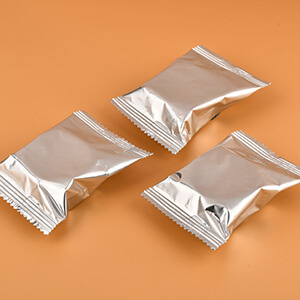

SAMPLES MADE BY THIS MACHINE

Machine Pictures
