liquid cup filling sealing machine

AF-H1 Cup liquid filling sealing machine is the solution to fill liquid in cups and closed with the aluminum or plastic sealing material.

This machine can widely be used in honey, yogurt, water, juice, jam, etc fill and seal
This is a fully automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, liquid, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.
Can use pre-cut lids or rolled film in this machine

SPECIFICATIONS

ModelAF-H1 liquid cup filling sealing machine
Filling head1 head
Filling Accuracy±0.2g
Machine speed1500-2000 cph
Voltage220V/60HZ/3PH
Machine size1800*1200*2000mm
Machine weight500KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. Machine speed is fast and reliable.
  2. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, liquid, air pressure, temperature, position, etc.
  3. Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
  4. Volumetric filling valve to control fill, high accuracy and stable working.
  5. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
  6. Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
  7. Machine is very easy to use and maintain.

FUNCTIONS

☆ Automatic feed the empty cups
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Auto filling liquid with high accuracy valve
☆ Put pre-cut lids (can also use rolled film)
☆ Output to the conveyor
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto liquid storage tank and feeding system
☆ Pack 1/10/20 pcs in one bag machine
☆ Pack 4/10 pcs in one box machine

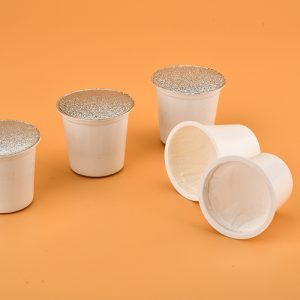

SAMPLES MADE BY THIS MACHINE

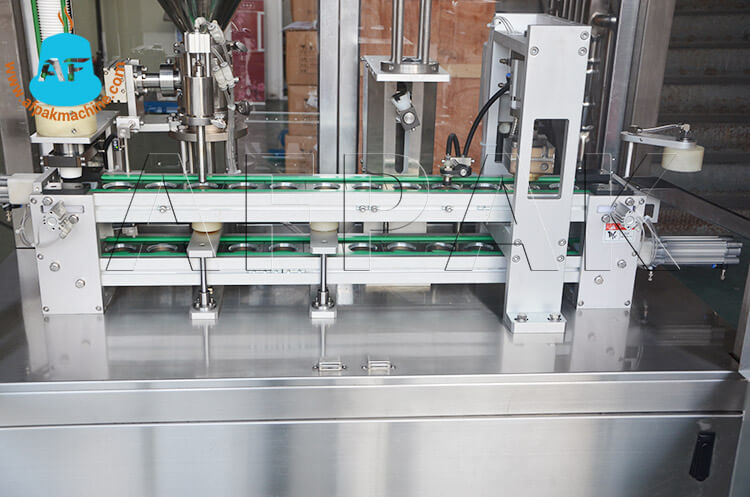

Machine Pictures
