2021 New Nespresso filling packaging machine, 10 years manufacturing, Quality assure

What is Nespresso Filling Packaging Machine?

AFPAK’s Nespresso filling packaging machine is a quality solution for filling, sealing, and packaging Nespresso compatible capsules. It is compact and powerful, fully automatic operation, complete functions, simple and convenient to use, without special maintenance, and is deeply loved by users.

This Nespresso filling packaging equipment has the following functions: automatic cup sorting, automatic filling, automatic sealing, automatic conveying, automatic bagging; more intelligent control, such as no cup no filling, no cup stop, no film no sealing, etc.

You can use this machine to pack Bio Nespresso pods, aluminum Nespresso capsules, plastic Nespresso capsules, and also can change molds to produce other capsules or pods like K cups, Lavazza capsules, Caffitaly, etc…

We have a variety of output and packages for you to choose from, you just need to tell us your needs, and we will provide you with a plan as soon as possible.

Machine details

Brief Introduce of Nespresso filling packaging machine:

AFPAK RN100S Nespresso filling packaging machine adopt the latest technology and manufacturing process, It has world-leading quality, meet US EURO machine standard.

this Nespresso pod filling packaging machine is designed especially for bio-degradable Nespresso pods. It can also use other aluminum Nespresso pods or plastic Nespresso pods

Its material use is stronger and better than previous edition machines; Components use the top brands like Schneider, Omron, autonomics, etc.

  • stainless steel frame; Organic glass, open door machine stop safety guarantee;
  • Easy change molds to produce different kinds of capsules
  • Coffee servo screw filling, the filling volume can be adjusted.
  • English and Chinese language Touch screen, no cup no filling, all setting parameters on Touchscreen
  • Automatic vacuum suck lids, No cup no Lids suck. Lids suck fault automatic stop.
  • Strong and Beautiful Sealing, Omron temperature controller to adjust the temperature.

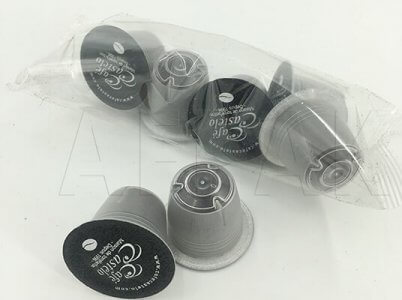

Nespresso filling packaging machine samples
Nespresso filling packaging machine samples

Standard Functions of Nespresso filling packaging machine:

  1. Automatic sort and feed the Nespresso pods to the machine
  2.  Automatic pick and place empty Nespresso capsule
  3. Automatic detect whether Nespresso well located on the machine by sensor.
  4. Servo motor to fill coffee while stirring, weight around 5-20g ( can be adjusted)
  5. Auto pick and place pre-cut Foil Lids ( Or roll film, cutting, and sealing)
  6. Auto-detect whether the foil lids is ready by Sensor
  7. Auto Seal
  8. Nitrogen flushing from Filling station to Sealing station
  9. Auto output to the conveyor
  10. Convey the filled and sealed Nespresso pods to the bag packaging machine
  11. Auto count 1-20 Nespresso pods
  12. Auto make the bags
  13. Auto output the final Nespresso packages

Optional Functions of Nespresso pods filling packaging machine:

  • Inline weight checker
  • Inkjet printing: print date clearly
    (Also can add other functions.)

Applications of Nespresso filling machine:

AfPak automatic Nespresso filling packaging machine has wide applications:
1. filling materials: Powder: Coffee, juice powder, etc.
2. Packing Container: k cup, Bio/plastic/aluminum Nespresso pods, Lavazza Series capsules, plastic capsules, small cups,etc.

Specifications

AFPAK Nespresso filling packaging machine

ModelAF-RN100S
SpeedOver 3000-4000 C/H
Working station1lane
Filling range0-20grams
Filling accuracy±0.2g
Voltage1PH/220V/50/60HZ Can be customized
Air pressure/gas consumption≥0.8Mpa/0.1m²
Working Temperature5-35°C
Relative humidity≤85%
Machine sizeL5000mm*W1000mm* H2300mm
