Nespresso filling sealing packaging machine

Watch Machine Video

AF-H4 Nespresso filling sealing packaging machine is the solution to fill coffee in nespresso capsules, close and pack with Nitrogen gas.
This is a full automatic line with incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
The servo motor controlled filling device is designed to provide high accuracy, extremely smooth operation at all speeds.
This machine can produce both Plastic and Aluminum nespresso capsules and pack 1/10/20 pcs in one bag

SPECIFICATIONS

ModelAF-H4
Filling head4 heads
Filling Accuracy±0.2g
Machine speed6000-7200 cph
Voltage220V/60HZ/3PH
Machine size4800*4000*2000mm
Machine weight2500KGS
NoteThis is a custom-build machine, so each machine specifications will have different

FEATURES

  1. Fully automatic machine which can do filling sealing bag packaging process
  2. It is a fully automatic production line, which incorporates a variety of sensors that allows it to detect and smartly decide how to respond to the presence or absence of cups, lids, coffee, air pressure, temperature, position, etc.
  3. Omron control system will ensure reliable power to drive the whole line. Also can use other brands like Allen Bradley, Schneider, Mitsubishi as per your requirement.
  4. Servo Motor controlled filler, filling accuracy is stable and high in 0.2 grams error.
  5. All electronic and pneumatic component brands used in the construction of this machine are highest quality name brands globally known in the industry manufactured in countries such as USA, Japan, Germany and France.
  6. Rugged constructed to guarantee a long service life. Most of the body is built with stainless steel 304 and food grade stainless steel (SS304) is used for all parts in contact with products.
  7. Machine is very easy to use and maintain.

FUNCTIONS

☆ Automatically feed the empty Nespresso capsules
☆ Automatic detect whether capsules well loaded on the machine by sensor.
☆ Servo motor to fill coffee while vibrating, weight around 5-7g ( can be adjust)(Nitrogen flushing here)
☆ Clean the capsule edge and press the coffee tightly
☆ Put pre-cut lids (can also use rolled film) (Nitrogen flushing here)
☆ Output to the conveyor
☆ Auto make the bags
☆ Auto count the capsules
☆ Auto fill the capsules inside bags and seal with Nitrogen flushing
☆ Output the finished capsules

OPTIONAL FUNCTIONS

☆ Inline weight detector
☆ Auto Screw tea feeder
☆ Cutting and putting the filter on the capsule button.
☆ Pack 4/10 pcs in one box machine

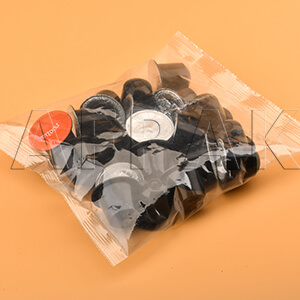

SAMPLES MADE BY THIS MACHINE

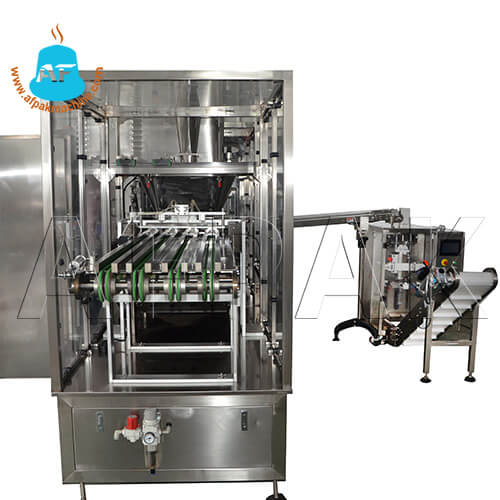

Machine Pictures
