RN120 Rotary Nespresso Capsule Filling Machine
chevron-left
chevron-right

Watch Machine Video

RN120 Rotary Nespresso Capsule Filling Machine is a highly efficient, intelligent, high-quality, fully automatic Nespresso production machine. It adopts the latest and most advanced design, the highest production process, and can meet the production needs of medium and large enterprises

It is widely used, one machine can realize the production of Nespresso compatible coffee capsules made of aluminum, biodegradable, plastic PP, and other materials, you can use it to fill coffee, tea granules, cocoa powder, milk powder, instant powder, and other powder products, it is a truly multi-purpose machine.

It is small and valuable, and it is capable of producing up to 7,000 capsules per hour in the space of 4m*2m. Moreover, it only requires the cooperation of one operator.

RN120 Rotary Nespresso Capsule Filling Machine's unique cup management and cup delivery mechanism, high efficiency, not easy to jam and break the cup, with lifting mechanism, the design fully conforms to the human body mechanics. It greatly reduces the accident rate of staff operation.

The high precision filling has always been a major feature of AFPAK's nespresso filling equipment.

For this RN120 Rotary Nespresso capsule filling machine, we use the most stable jitter-free servo motor control vertical screw filling method, able to fill the coffee into the capsule cups in an orderly manner, the filling volume 0-20g adjustable, the whole filling system is connected with quick connect, able to quickly load and unload. The whole filling system is connected with a quick connection for fast loading and unloading. Another vacuum loading equipment is standard, which can keep the maximum amount of powder at all times, so as to better complete the filling.

Nespresso compatible capsules are filled with nitrogen to ensure the long-lasting freshness of each capsule.

Combined with the feedback from customers and our continuous experiments, we finally achieved a more efficient nitrogen filling system, and now the capsule cups produced by this RN120 Nespresso capsule filling machine can achieve less nitrogen consumption and high nitrogen content in the capsules.

The beautiful sealing makes your coffee stand out

The final step in producing a good capsule cup is strong and beautiful sealing.

RN120 Rotary Nespresso capsule filling machine can adjust different sealing temperatures and pressure according to different materials of sealing materials, moreover, our sealing head is customized according to your cup structure, thus guaranteeing the strongest and most beautiful sealing effect.
Depending on your needs, we have different sealing effects to choose from, all so that your coffee can stand out and be loved by more people.

More features to be experienced and discovered by you

Standard functions of RN120 Rotary Nespresso Capsule Filling Machine

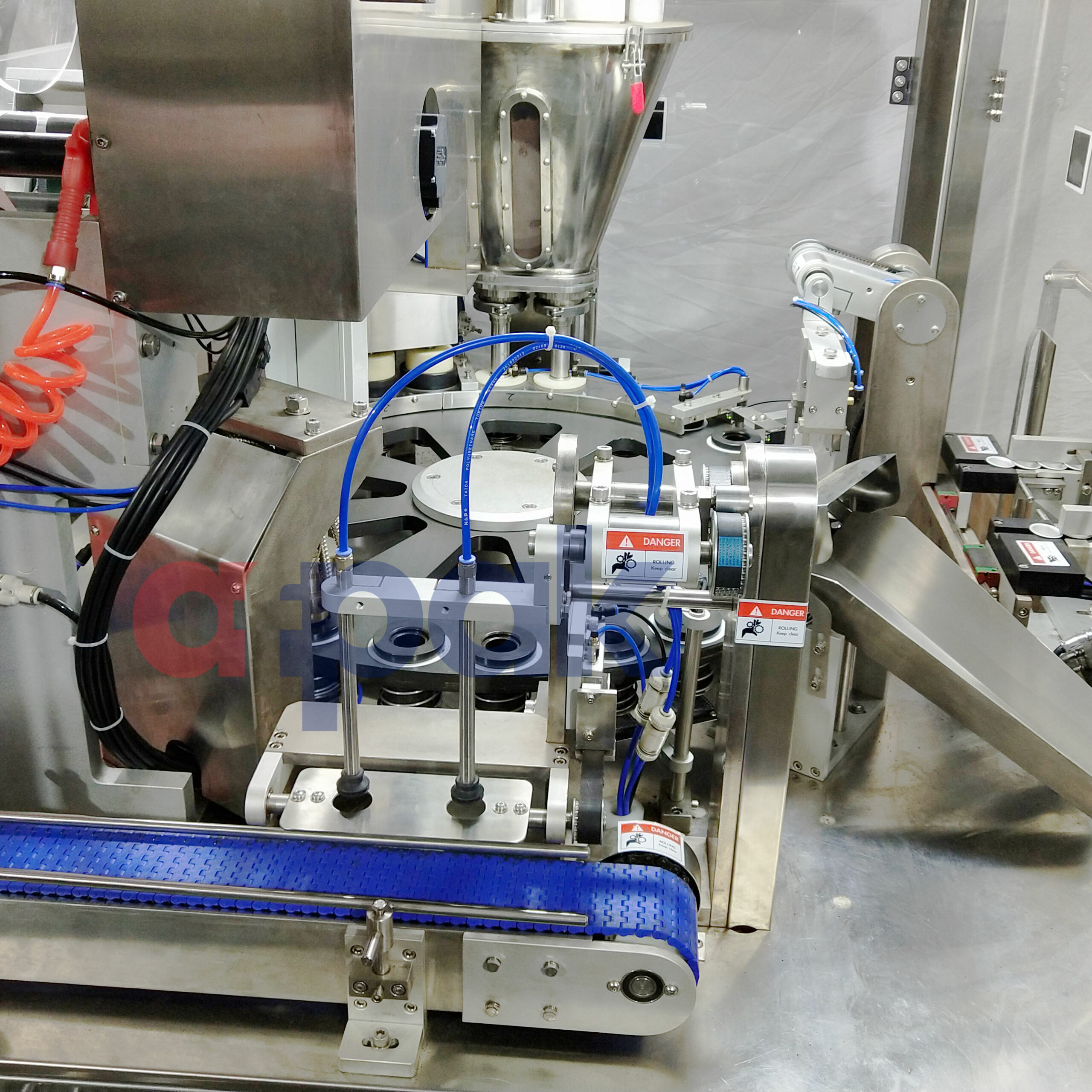

Inside-of-RN120-rotary-Nespresso-capsule-filling-machine
Inside-of-RN120-rotary-Nespresso-capsule-filling-machine

RN120 Rotary Nespresso capsule filling machine is the most comprehensive and advanced coffee capsule filling and sealing equipment produced in China, which can help you achieve:

  • Empty Nespresso capsules sorter and feeder
  • No Capsules No Filling Sensor
  • Auger Filling with auto coffee loader
  • Capsules edge cleaning and coffee tamping
  • Put pre-cut lids (Or roll film cut and seal)
  • Sealing
  • More than 10 stations to flush nitrogen between filling and sealing
  • Output good capsules
  • Reject bad capsules

  • English/Chinese languages operation system (can also be set to your language)
  • Schneider/Omron/Autonics/Delta electrical components
  • Italy standard CE certificated

Specifications of RN120 Rotary Nespresso Capsule Filling Machine

ModelRN120
TypeFull Auto
Lanes1
TypeRotary
Speed per minute100-120 capsules per minute
Filling heads2
Sealing heads2
Air consumption500-1000L/min
Nitrogen gas Consumption400-600L/min
Box packagingOptional function
Bag packagingOptional function
Power Supply1ph*220V 50/60Hz
Weight12KGS
Delivery4 weeks
control-panel-of-RN120-rotary-Nespresso-capsule-filling-machine
control-panel-of-RN120-rotary-Nespresso-capsule-filling-machine

About AFPAK

AFPAK researches designs and manufactures coffee capsule filling packing machines and equipment. For over 12 years, AFPAK has expanded to over three factories that deal in coffee capsule filling, coffee capsule packing, and empty capsules, among others.

We are ISO audited factory and all filling sealing and packaging machines have passed Italy standard CE certificated
