The manual of H2 coffee capsule filling sealing machine

AfpakAuthor PositionCoffee capsule filling sealing, Manual

The manual of H2 coffee capsule filling sealing machine What is the main structure of…

The manual of H2 coffee capsule filling sealing machine

What is the main structure of the H2 coffee capsule filling sealing machine.

The structure of the H2 coffee capsule filling sealing machine includes the empty capsules sorter and feeder device, empty capsules conveyor and filling and sealing zone.

1.1 The empty capsules sorter and feeder device and the empty capsules conveyor

With a vibrating plate, the empty capsules sorter and feeder device is used to sort out all disorganized empty cups so they could be put in order one by one on the conveyor. For H2 coffee capsule filling sealing machine, there would be 2 lanes of conveyor. The conveyor will deliver all the sorted empty cups to the filling and sealing zone.

1.2 The filling and sealing zone of H2 coffee capsules filling and sealing machine

The filling sealing zone consists of aluminum capsules feeding device, the coffee powder filling system, the nitrogen flushing system, the anti static system, the coffee powder tamping and capsule edge cleaning system, the roll film cutting and sealing station, the second sealing station and conveyor.

The aluminum capsule feeding device

The capsules are stocked here and delivered to the conveyor. Basically, the function of this device is similar to empty capsules sorter and feeder device, which is delivering the coffee capsules to the capsules conveyor. But the difference is based on the types of coffee capsules, the empty capsules sorter and feeder device are used to sort out those coffee capsules that are not easy to stack by taking advantage of the vibrating device.

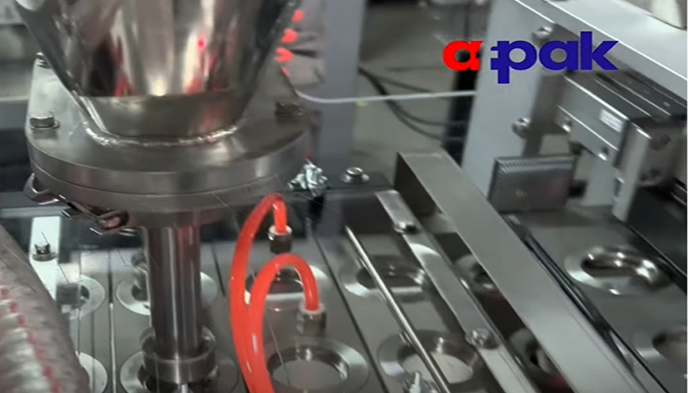

The coffee powder filling system

This coffee powder filling system has a conical coffee powder silo which could contain the powder of coffee, cocoa, tea leaves or other type of granules. The coffee powder will be filled into the coffee capsuled in the position of the conveyor.

The nitrogen flushing system

The nitrogen flushing system is used to keep nitrogen flushed during the process of filling and sealing so to ensure the freshness of the coffee powder and extend the shelf life of filled and sealed coffee capsules.

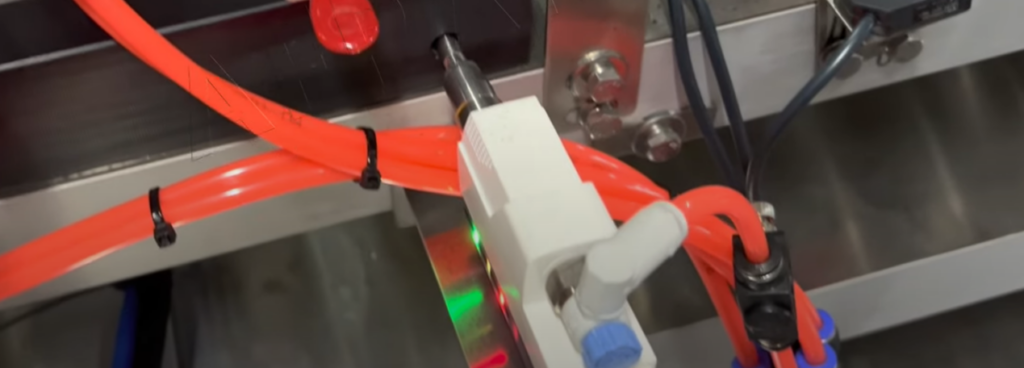

The anti-static system

The static electricity might be generated during the process of filling and sealing, which is harmful to coffee capsule quality and their output, and also the machine itself. Static electricity can cause powder deposition during production to block pipelines. The anti static system will lead to form a conductive layer on the surface of the parts of the machine, thereby reducing its surface resistivity and allowing the static charge that has been generated to leak quickly.

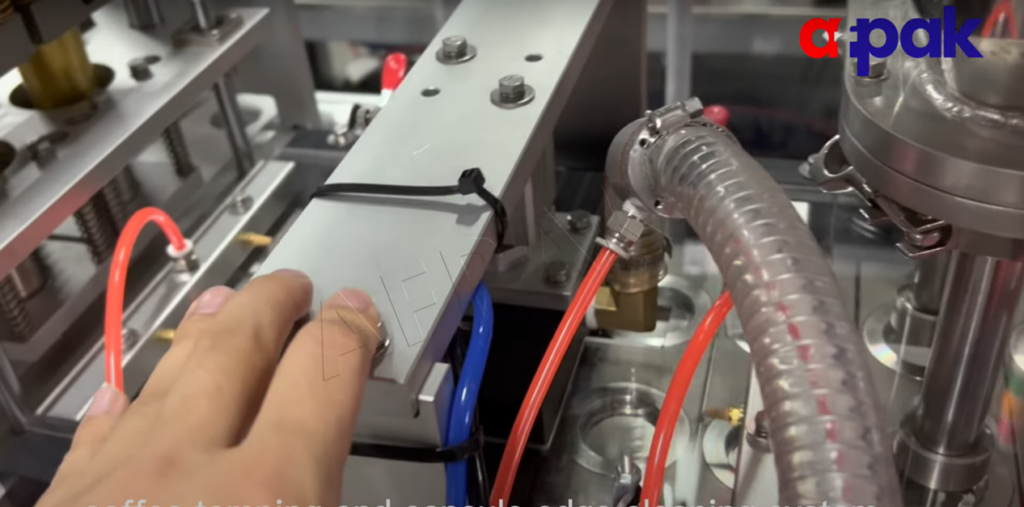

The coffee powder tamping and capsule edge cleaning system

This system is to tamp the coffee powder in the coffee capsules, so to extract the air inside. Also there is edge cleaning function to make sure a complete sealing.

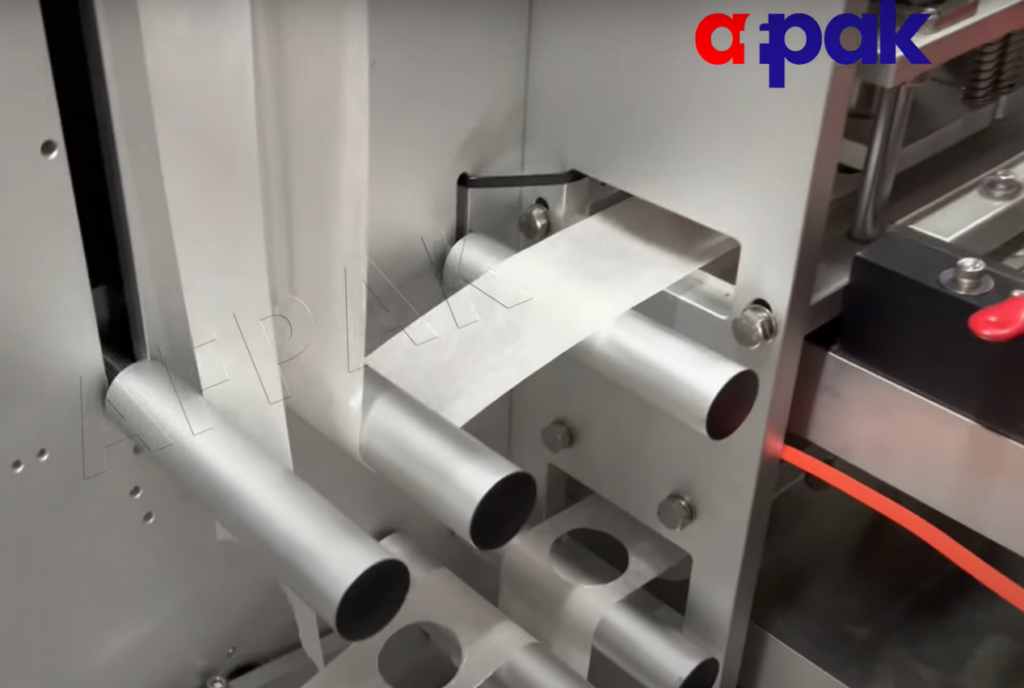

The roll film cutting and sealing station

The roll film cutting system would cut the film into the shape of the lid which match the size of the mouth of the coffee capsules. And the system would deliver it to the sealing station for sealing the film to the coffee capsules.

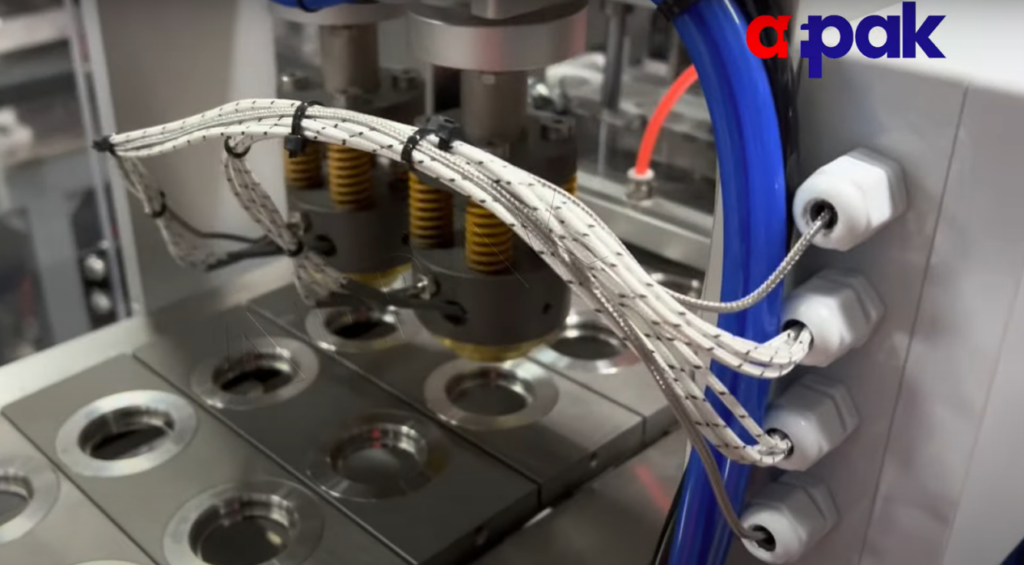

The second sealing station and conveyor

The second sealing station is to make sure the sealing is tight enough and complete. The conveyor would output the well filled and sealed coffee capsules.

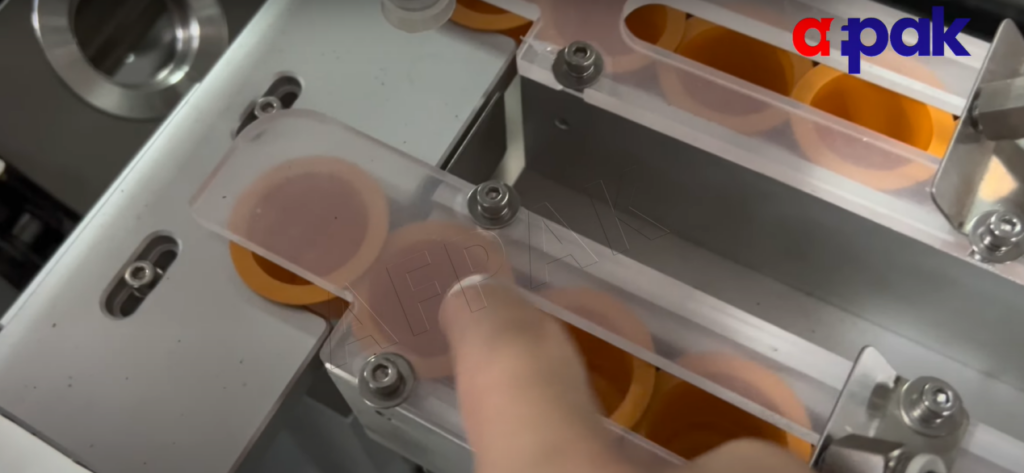

How to connect the empty capsules sorting and feeding device to the H2 coffee capsule filling sealing machine?

In general, the empty capsules sorting and feeding device will be shipped separately. Therefore, after receiving this device and H2 coffee capsule filling sealing machine, customer will need to link them together.

The key thing is put the 2 machine at the right position, so the conveyor of the empty capsules (2 lanes) sorting and feeding device aligns with the conveyor of the H2 coffee capsule filling sealing machine, that the empty capsules can be delivered from the sorting and feeding device smoothly.

After the device is put in the right position, the 2 pipes should be connected.

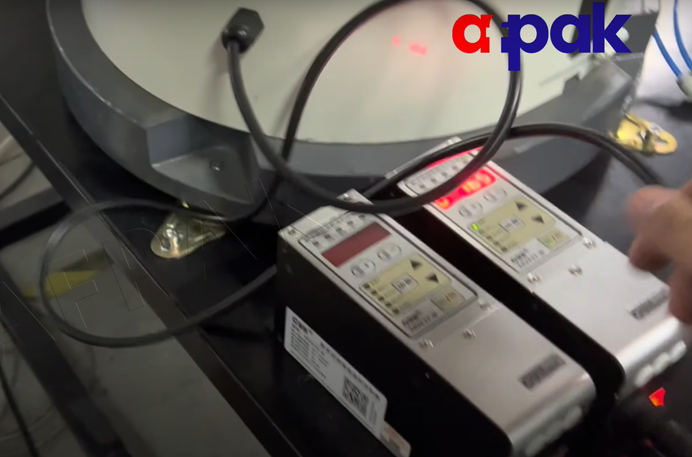

Further, connect the pipe related the vibration plate. Once it is connected and the switch is on, the device is ready to work.

How the cleaning of the hopper which contains the coffee powder is carried out?

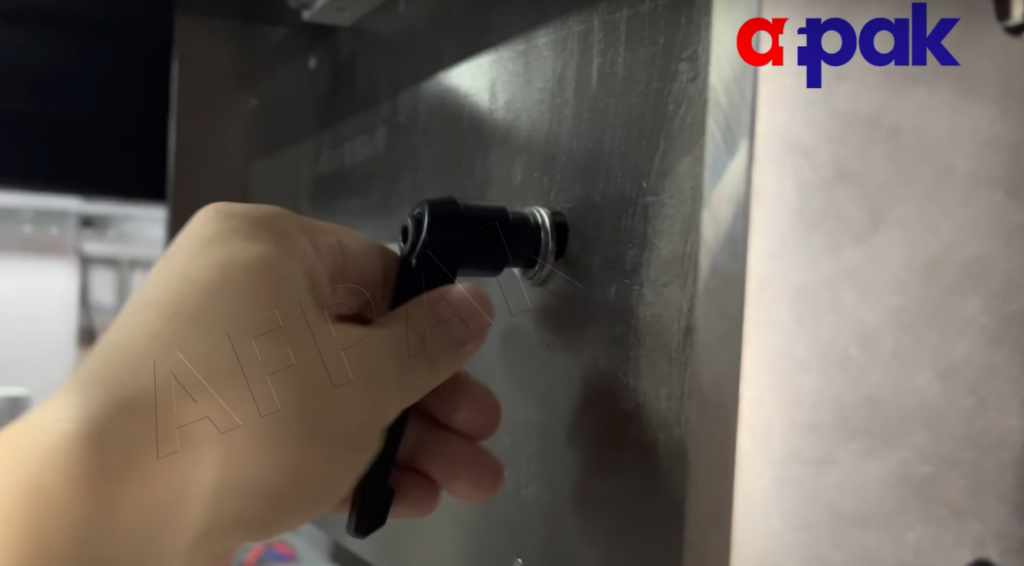

Firstly, find the screw on the side of the hopper. Release the screw a bit. The the cover will be able to be removed.

Take out the down cover. So the whole hopper could move away from the machine.

Put a bin down the nozzle of the hopper to collect the coffee powder residue after cleaning.

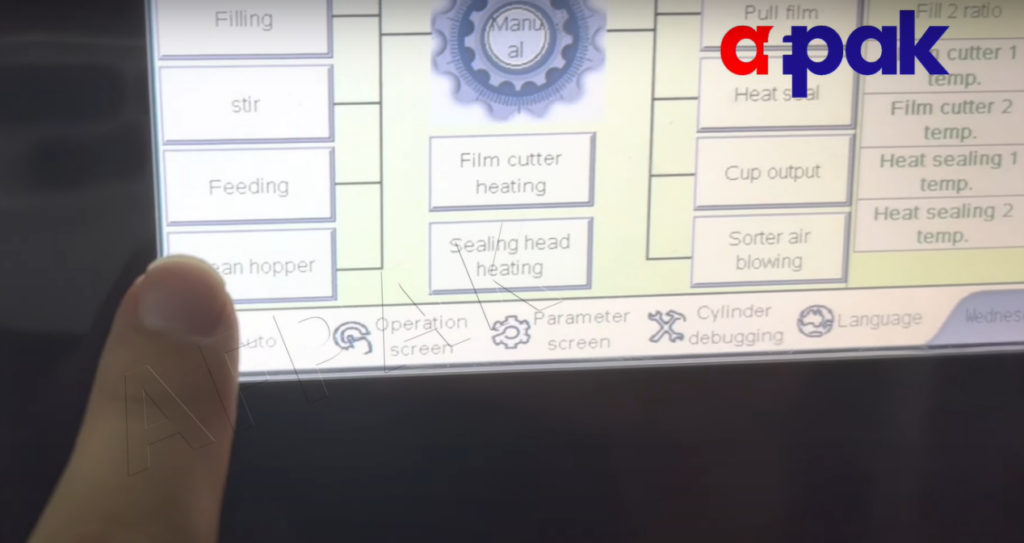

The next step is to find the “clean hopper” on the screen and click the “run” button. So the coffee powder residue will be cleaned drop to the bin.

As on the photo there are some connectors. Take off them.

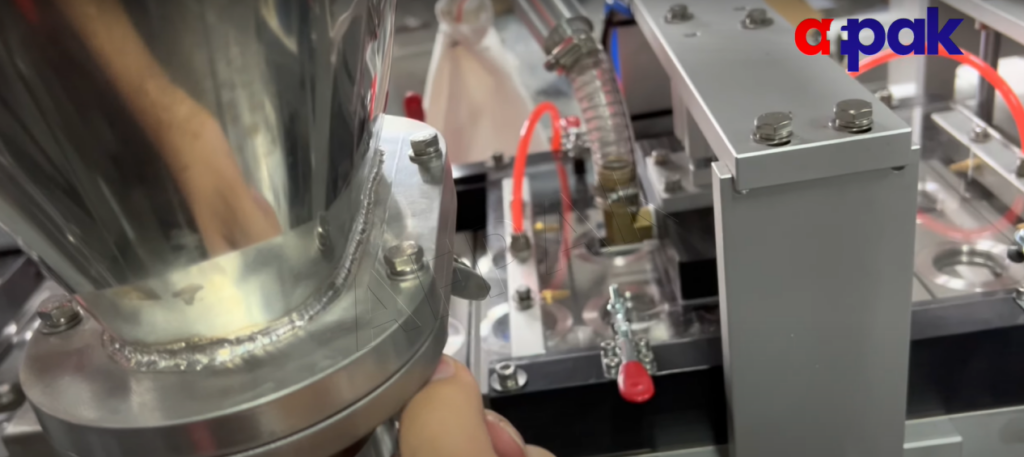

 On the upside of the hopper, there are 4 clamps. Release them. So the whole hopper is ready to open that the auger and other parts could be cleaned.

After cleaning, when putting the hopper back, be careful that the nozzle is in the right position, matching the positions on the conveyor mold.

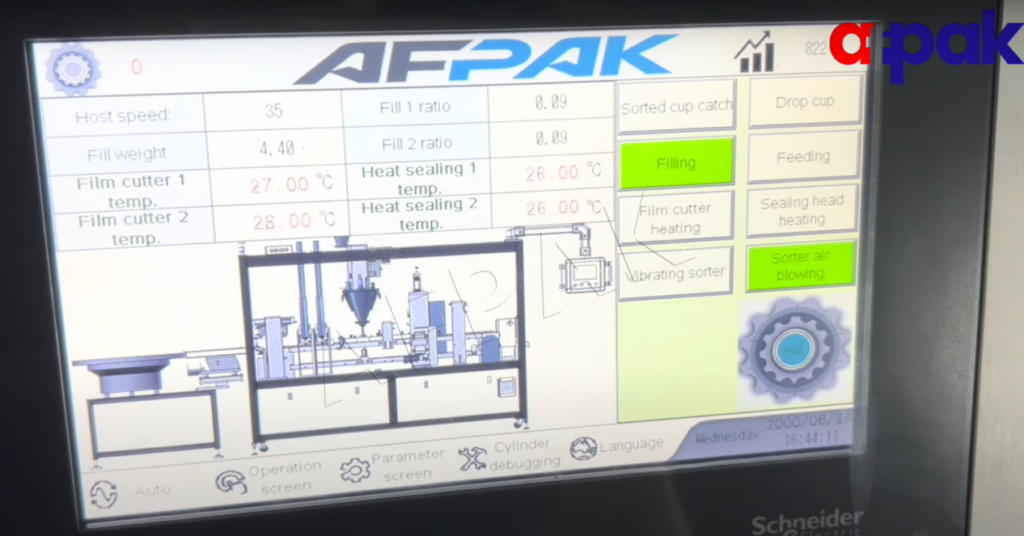

The system manual for operating the H2 coffee capsules filling sealing machine

Click “auto” button, so the machine will carry out production automatically.

“Sorted cup catch” refers to the bio-degradable capsules from the sorting and feeding device.

“Drop cups” is related to aluminum capsules feeding device.

“Filling” means the process of filling the coffee powder to the empty coffee capsules.

“Feeding” refers to delivery the coffee powder from the coffee powder tank to the hopper.

“Film cutter heating” is related to the filling and sealing area’s temperature of “film cutter 1 temp.” and “film cutter 2 temp.”.

“Sealing head heating” refers to the second sealing head.

“Heat sealing 1 temp.” and “Heat sealing 2 temp.” refers to the second sealing station’ s temperature.

“Vibrating sorter” is for sorting out the empty capsules in the empty coffee capsules sorting and feeding device.

“Sorter air blowing” refers to the empty coffee capsules sorting and feeding device.

“Host speed” means the running speed of the machine.

“Fill ratio” is the amount of coffee powder to be filled.

“Fill 1 ratio” and “Fill 2 ratio” are used to adjust the accuracy of the coffee powder not filled accurately. Big number means more coffee powder is filled and small number means less coffee powder is filled.

On the “Operation scree” page.

The blue gear shape button is for manual running or automatic running.

For auto model, the machine will run itself and the relative button will be green.

For manual mode, control each function and press the Green button“Run”. So this function will work.

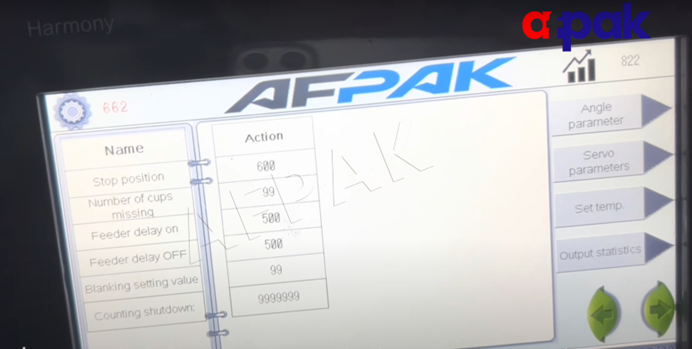

On the “Parameter screen”.

The parameters are set and tested already. There are many pages on the “Parameter screen”. In general, only “Servo parameters” should be adjusted.

Before you adjust the parameter on “Servo parameters”, you better screenshot the original data.

“Cylinder debugging” refers to control of each cylinder.

“Language” is for setting the language.

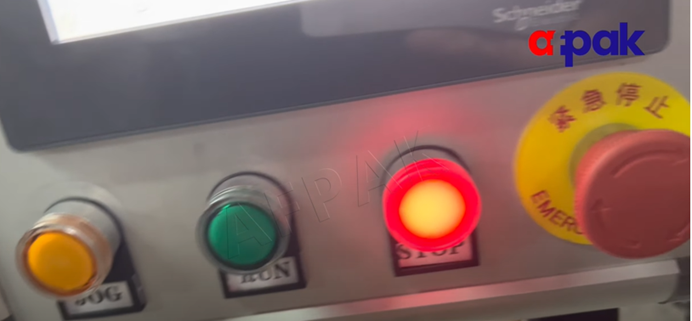

Below yellow button “Jog” refers to run the machine for one time.

Green button “Run” refers to running the machine.

Red button “Stop” refers to stopping the machine. When the alarm is on, use the “Stop” button to stop the alarm.

“Emergency stop” is to stop the machine in emergent situation.

An video introduction is as below.

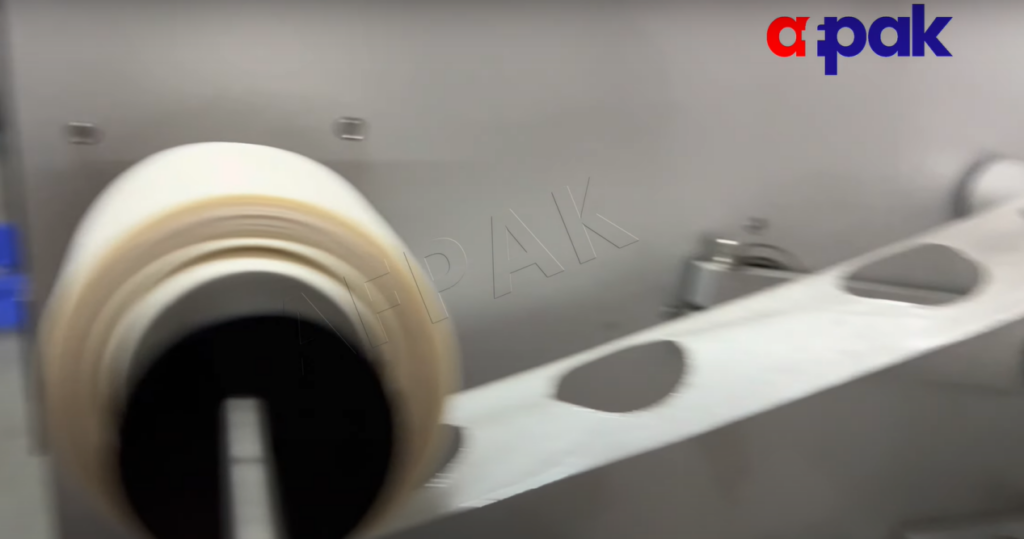

How the roll film is placed on the H2 coffee capsule filling sealing machine?

The new roll film will be put on the above parts. Press the air gun to make the film flat as on the video.

The film will go through the sealing station and back to the used film collection parts.

How the electricity, air compressor, and nitrogen generator is connected to the H2 coffee capsule filling sealing machine?

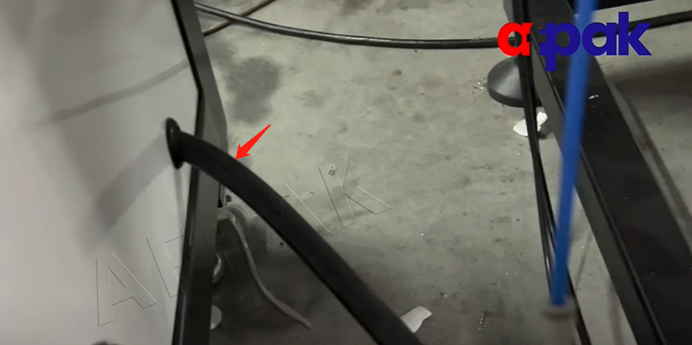

This thick cable is 3-meter long which is the electricity cable. Change the plug and connect it to the power.

There is the switch for the machine to run after all are connected.

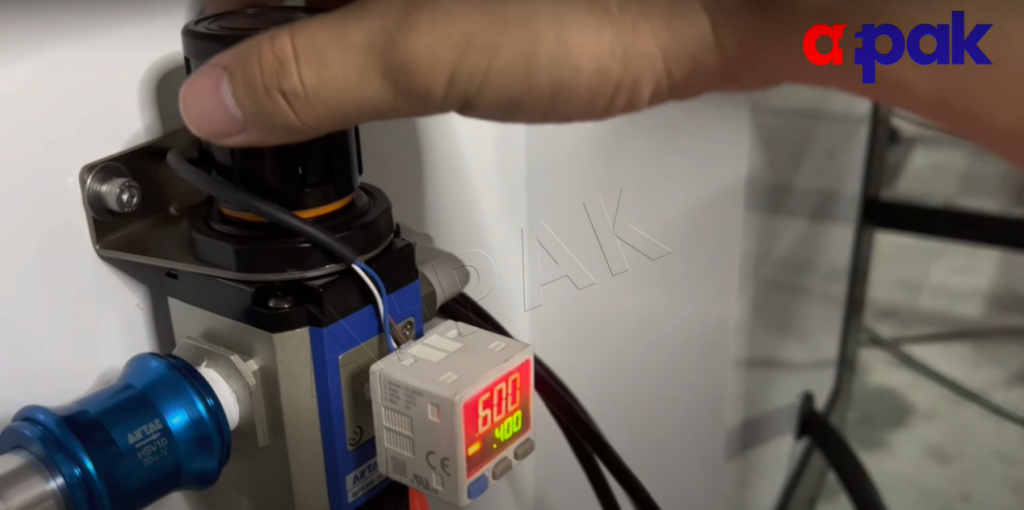

This is the part to connect the air compressor. The transparent pipe is used to connect the air compressor.After that, change the position of the blue part to get air supply and the meter color will be changed from green to red. The number will be higher on the meter. The air pressure is set to 0.4Mpa in general. Only this 0.4Mpa is met, could the machine work properly. If it is lower than this number, the machine will not work well. And the alarm will be on.

Lift the top part and rotate it so to adjust the air pressure. After the air pressure is adjusted, press the top part down to the original position.

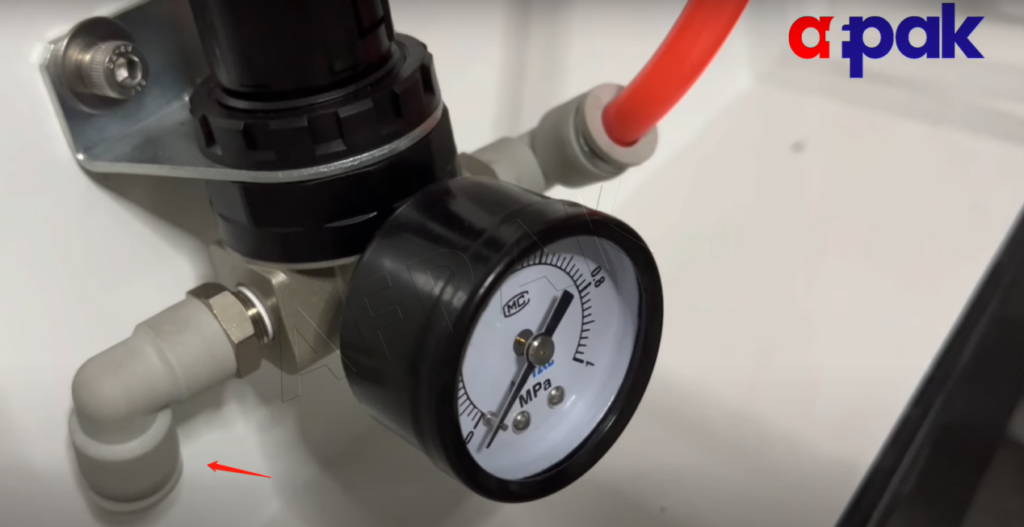

Below the air compressor connection part, there is the nitrogen generator connection part. The red arrow part refers to the input of the nitrogen. To adjust the pressure level of the nitrogen, you just need to make sure it is a little higher than zero. It does not require high pressure for nitrogen flushing.

How the filling weight is adjusted on the H2 coffee capsule filling sealing machine.

Firstly, fill the hopper with coffee powder to make sure the hopper is 80% full. So a constant filling would be ensured. Move the hopper aside to adjust the filling weight with a bin below the nozzles to collect coffee powder.

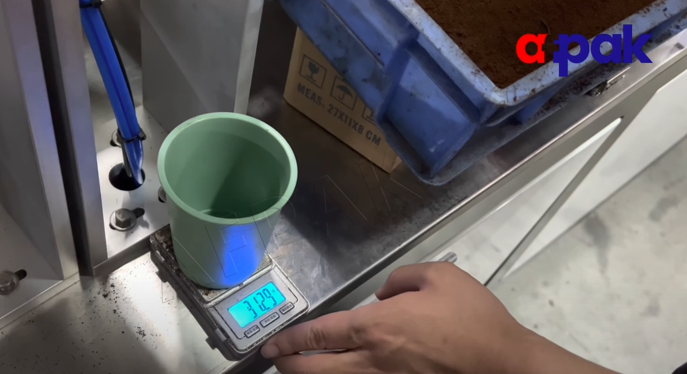

Find a cup and a scale. Put the cup on the scale and reset the scale to zero.

After, go to the screen. Click the “Filling” and “Stir” and make sure they become green on the “Operation screen”. Press the green “Run” button. So the coffee will start to drop from the nozzles.

If filling weight is set as 5.5, adjust the fill 1 or fill 2 ratio to increase the accuracy.

When filling weight is well set and adjusted, put the hopper back to the right position and lock it.

How the inline weight checker is working on the H2 coffee capsule filling sealing machine?

The inline weight checker is connected to the conveyor (the output part), used to weigh the filled and sealed capsules.
